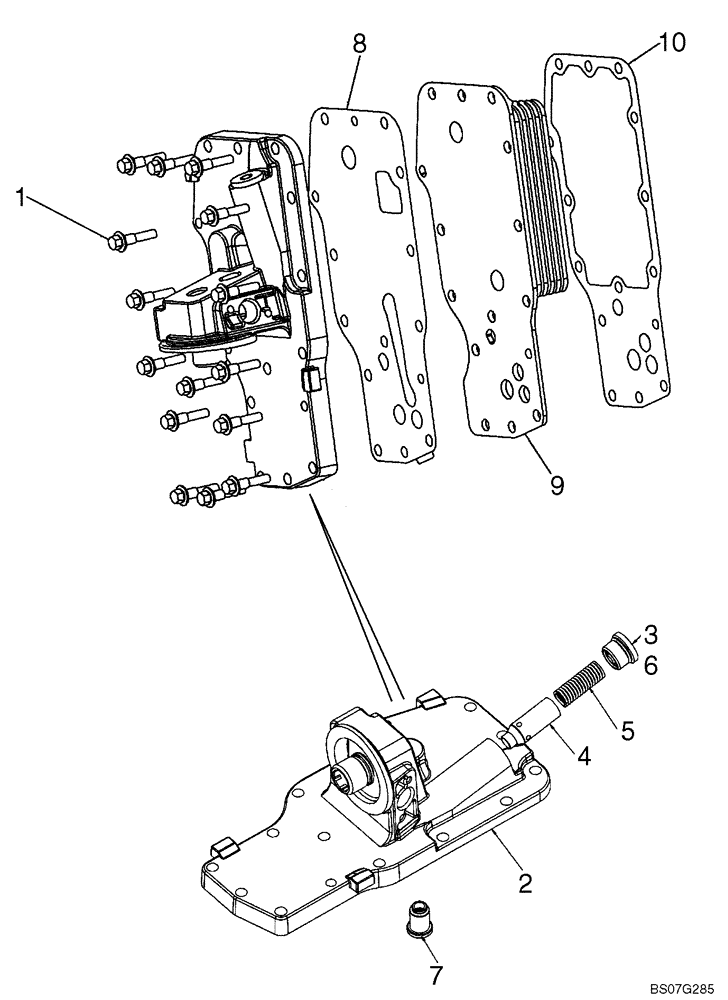

Запчасти Case 521E (02-12) - OIL FILTER AND COOLER (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Ref. 1 - 10

1шт.

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2853780

FILTER HEAD

Housing Assy. Incl. Refs. 2 - 7

1шт.

2

4899566

FILTER HEAD

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

Incl. Ref. 6

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Reg.

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4896409

GASKET,1.55mm Thk

1шт.

9

4896406

HEAT EXCHANGER

1шт.

9

2853722

HEAT EXCHANGER

In Alterative

1шт.

10

2830559

GASKET,0.5mm Thk

1шт.
