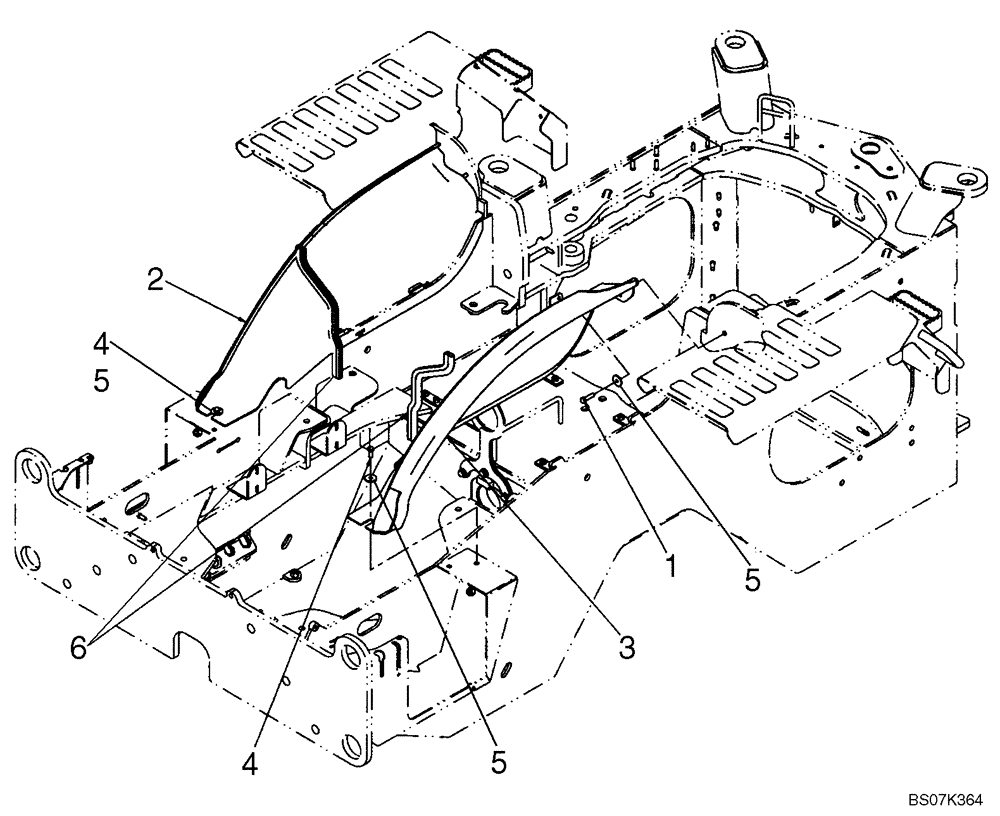

Запчасти Case 521E (09-41) - FENDERS, REAR - GUARD (09) - CHASSIS

1

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

2

403154A3

FENDER

LH Wheel Well, Tan

1шт.

2

409497A2

FENDER

LH Wheel Well, Gray

1шт.

3

403155A3

FENDER

RH Wheel Well, Tan

1шт.

3

409498A2

FENDER

RH Wheel Well, Gray

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Zinc

4шт.

6

383541A1

RUBBER SEAL,464mm L

Fan Shroud Seal, Cut From Bulk Seal 90-2894T1

2шт.
