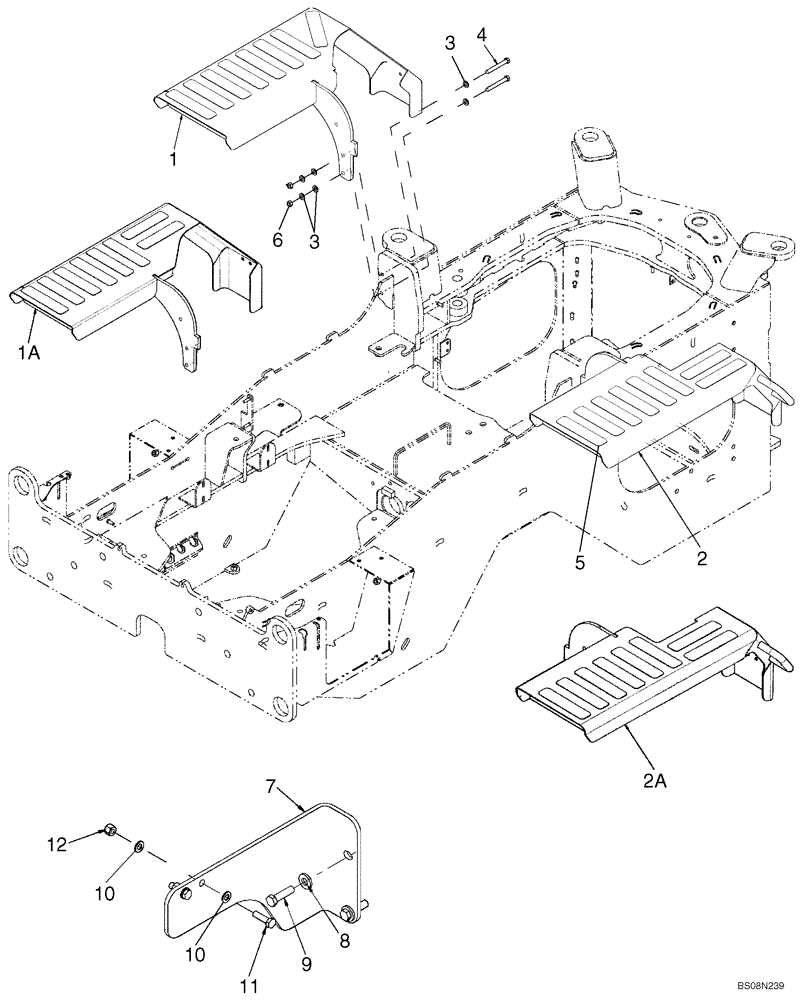

Запчасти Case 521E (09-39) - FENDERS, REAR - STANDARD (09) - CHASSIS

1

87701814

SUPPORT

LH Platform; Prior To P.I.N. N8F204954

1шт.

1

84185193

SUPPORT

LH Platform, Start Serial: NAF208471

1шт.

1a

87754694

SUPPORT

LH Platform; P.I.N. N8F204954 And After

1шт.

2

87701816

SUPPORT

RH Platform; Prior To P.I.N. N8F204954

1шт.

2a

87754692

SUPPORT

RH Platform; P.I.N. N8F204954 And After

1шт.

2

84185195

SUPPORT

RH Platform, Start Serial: NAF208471

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

4

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

5

D55216

PAD,2" x 9"

16шт.

6

829-1412

NUT,M12, Cl 10.9

4шт.

7

87609427

BRACKET

RH Step Support

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
