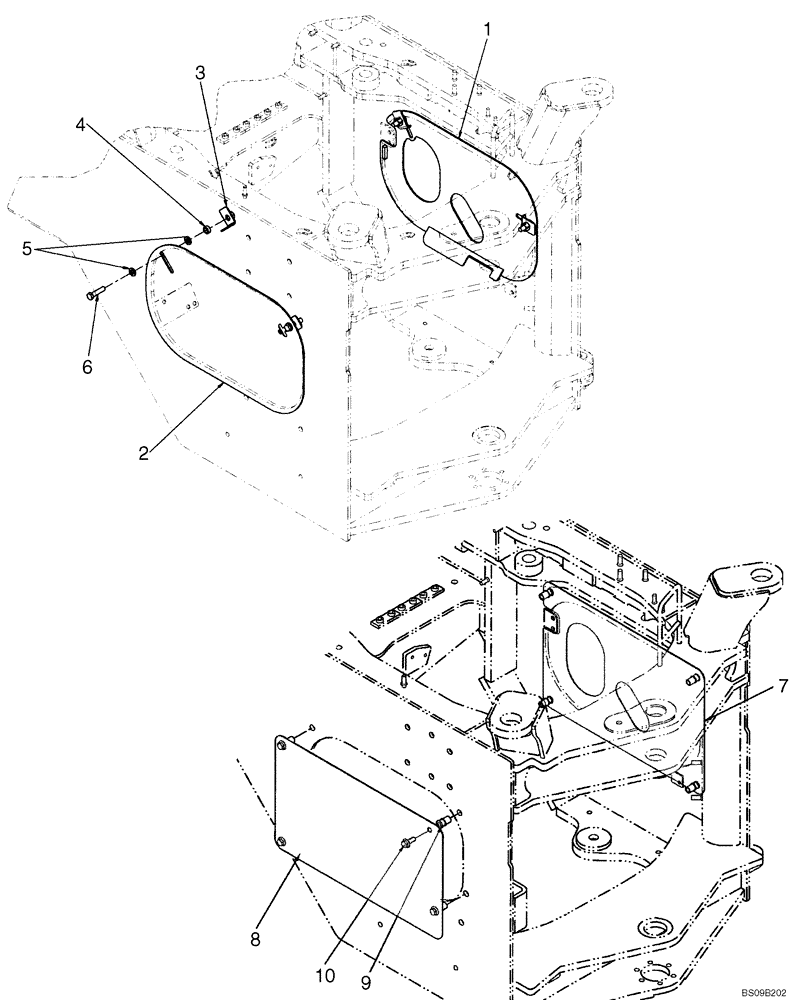

Запчасти Case 521E (09-35) - COVERS - FRAME, REAR (09) - CHASSIS

REF

INSTRUCTION

2-BOLT COVERS, Serial Range: -N9F206860

1шт.

1

87679830

COVER

LH, Serial Range: -N9F206860

1шт.

2

87644326

COVER

RH, Serial Range: -N9F206860

1шт.

3

87404138

CLAMP

Side Cover, Serial Range: -N9F206860

4шт.

4

D35859

SPACER

, Serial Range: -N9F206860

4шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

, Serial Range: -N9F206860

8шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

, Serial Range: -N9F206860

4шт.

REF

INSTRUCTION

4-BOLT COVERS, Start Serial: N9F206861

1шт.

7

84139969

COVER

COVER, Side, LH, Start Serial: N9F206861

1шт.

8

84139972

COVER

COVER, Side, RH, Start Serial: N9F206861

1шт.

9

84139978

NUT,M12 x 1.75

INSERT, Threaded, Start Serial: N9F206861

8шт.

10

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

, Start Serial: N9F206861

8шт.
