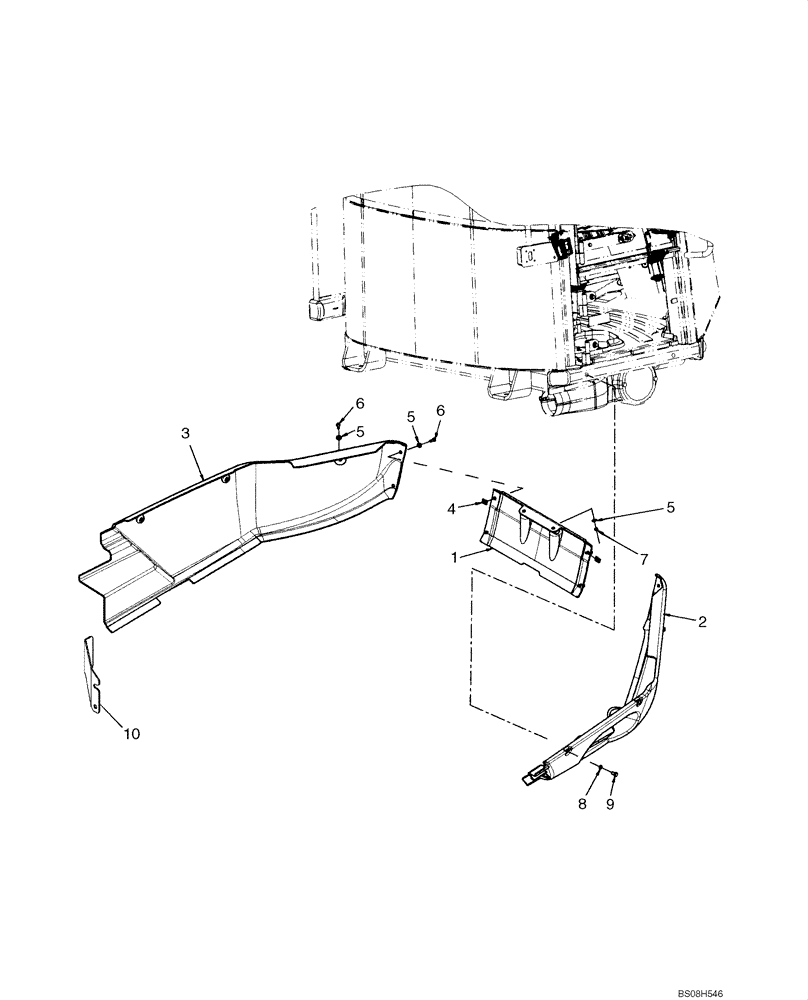

Запчасти Case 521E (09-34) - COVERS - CAB AND CANOPY, LOWER (09) - CHASSIS

1

87671758

SKIRT COVER

Front, Tan

1шт.

1

87671759

SKIRT COVER

Front, Gray

1шт.

2

87674810

SKIRT COVER

RH, Tan

1шт.

2

87674811

SKIRT COVER

RH, Gray

1шт.

3

87674807

SKIRT COVER

LH, Tan

1шт.

3

87674808

SKIRT COVER

LH, Gray

1шт.

4

833-40408

NUT,M8, U

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

432444A1

SPACER

4шт.

9

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

4шт.

10

87476320

BRACKET

Cab Skirt, Tan

1шт.

10

87476321

BRACKET

Cab Skirt, Gray

1шт.
