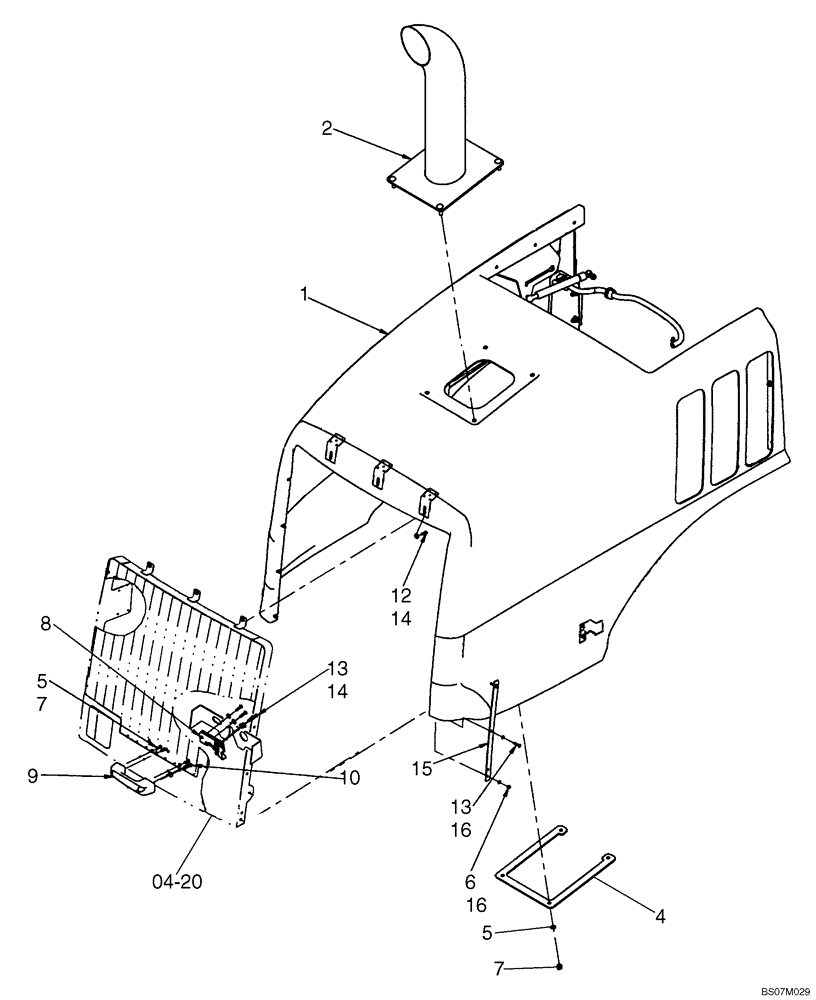

Запчасти Case 521E (09-31) - HOOD (09) - CHASSIS

REF

INSTRUCTION

ENGINE HOOD, FOR GRILLE AND REAR LIGHTS, SEE FIGURE 04-20

1шт.

1

87432250

HOOD

Fiberglass

1шт.

2

408195A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

4

408196A1

PLATE

Exhaust Pipe Backing

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

8

366176A2

LATCH

1шт.

9

60-7083T1

HANDLE

Hood

1шт.

10

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

12

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

13

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

8шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

15

444931A1

PLATE

2шт.

16

892-11006

LOCK WASHER,M6

2шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.
