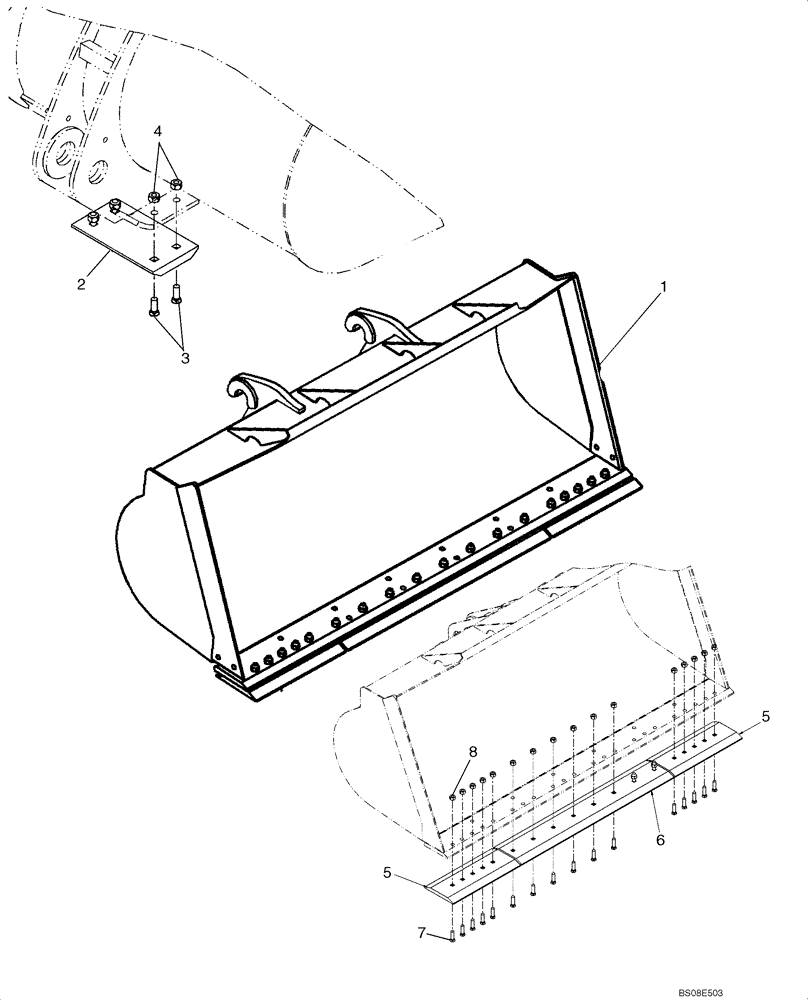

Запчасти Case 521E (09-26) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS - CNH (09) - CHASSIS

1

REF

INSTRUCTION

BUCKET/A 87734544; 1.6 Cubic Meter ( 2.1 Cubic Yards ); For Use With CNH Coupler; Order From Whole Goods; Inc. Refs. 2 - 8

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

360939A1

PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

Hardened

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES

1шт.

5

87651209

CUTTING EDGE,593mm L x 254mm W x 25mm Thk

Outer; Bolt On

2шт.

6

87651175

CUTTING EDGE

Center; Bolt On

1шт.

7

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

18шт.
