Запчасти Case 521E (02-10) - OIL PUMP - ENGINE (02) - ENGINE

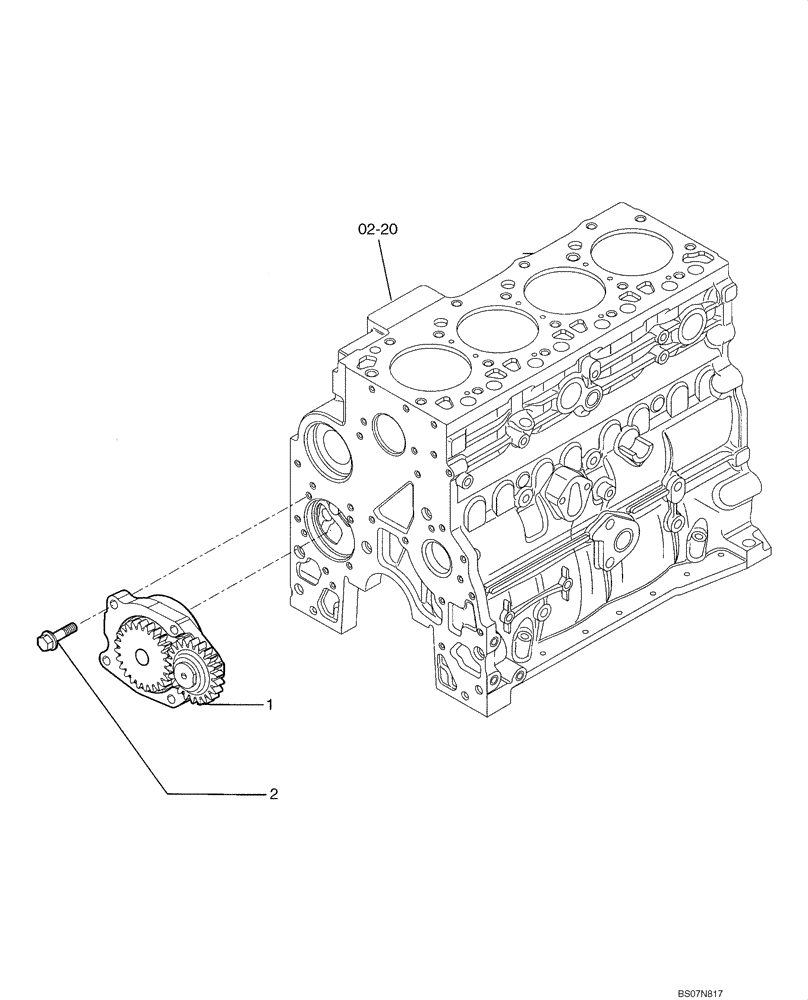

Схема запчастей Case 521E - (02-10) - OIL PUMP - ENGINE (02) - ENGINE
2
1
02-20

Артикул

Название

Примечание

Количество

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 2

1шт.

1

4897480

ENGINE OIL PUMP

1шт.

1

4897480R

REMAN-ENG OIL PUMP

521E TIER 3 (1/08-)

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

1

2853414

ENGINE OIL PUMP

Alternate, Serial Range: Part-4897480

1шт.

1

4897480R

REMAN-ENG OIL PUMP

521E TIER 3 (1/08-), REMAN FOR NEW P/N 2853414

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.

Выбрано товаров: 8
