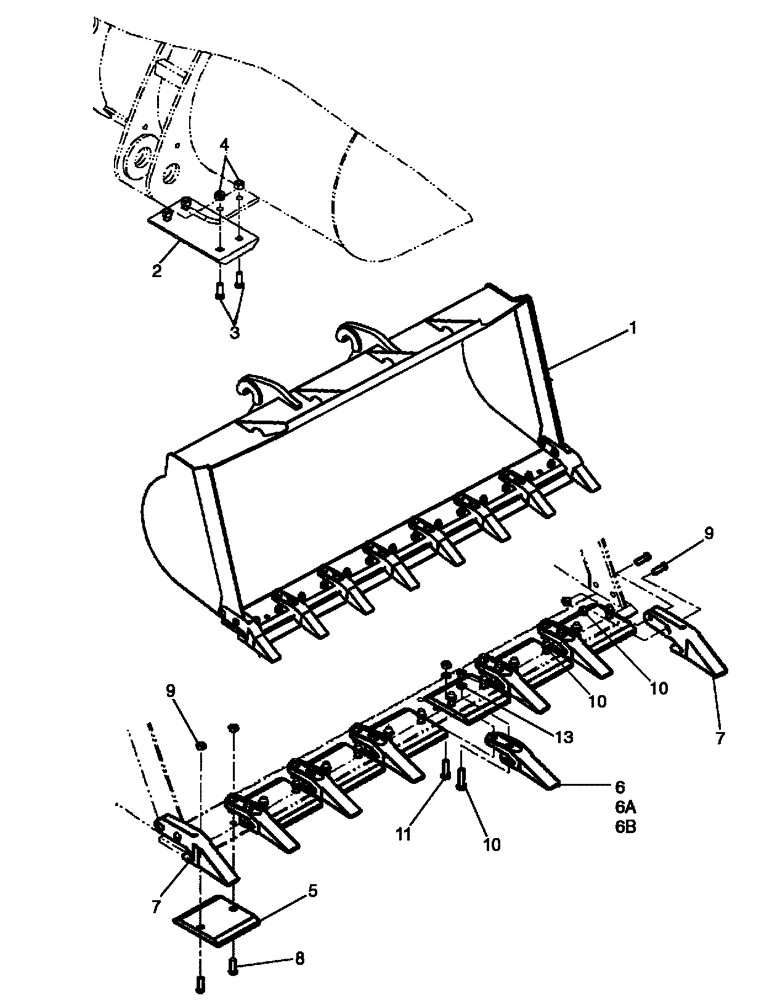

Запчасти Case 521E (09-22) - LOADER BUCKET - WITH BOLT ON TEETH, SEGMENTS AND SKID PADS - CNH (09) - CHASSIS

1

REF

INSTRUCTION

BUCKET ASSY, 84168098; 1.5 Cubic Meters ( 2.0 Cubic Yards ); For Use With CNH Couplers; Incl. Refs. 2 - 13

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

360939A1

PLATE

Bottom; Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BUCKET TEETH AND CUTTING EDGE SEGMENTS

1шт.

5

87651192

CUTTING EDGE

Bolt-On

7шт.

6

84168133

BUCKET TOOTH SHANK

Center; Standard, Incl. Refs. 6A, 6B

6шт.

6a

84168132

BUCKET TOOTH KEY

Tooth Pin

8шт.

6b

254820A1

TOOTH

Standard

1шт.

6b

254822A1

TOOTH

Abrasion, Not Illustrated

1шт.

6b

254823A1

BUCKET TOOTH

Penetration, Not Illustrated

1шт.

7

84168129

BUCKET TOOTH SHANK

Corner

2шт.

8

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

9

425-1612

NUT,3/4"-10, G5, Hvy

30шт.

10

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

6шт.

11

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

12

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

12шт.
