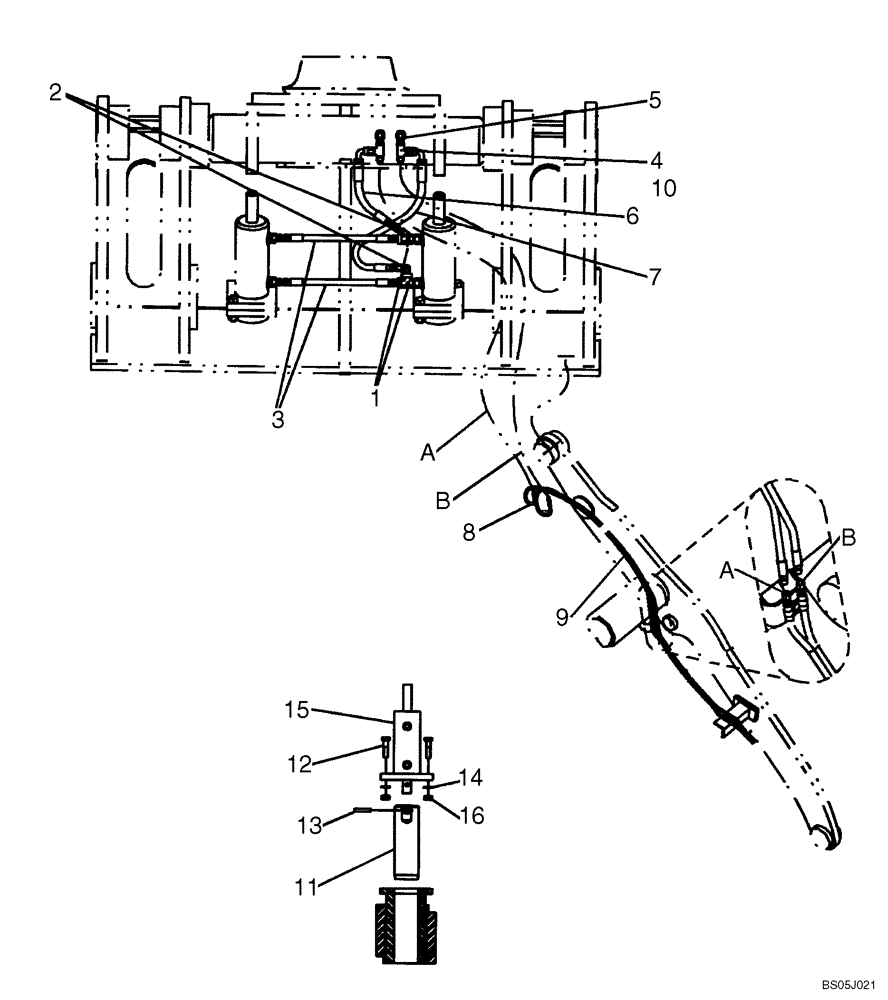

Запчасти Case 521E (09-16) - COUPLER, HYDRAULIC - XT - ACS (09) - CHASSIS
14
2
13
16
10
8
1
11
5
12
7
15
6
4
3
9
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
COUPLER, 87446224; ACS PRO 2000 Size 30; XT; Includes Jump Hoses; Not Illustrated
1шт.
REF
INSTRUCTION
PACKAGE, 87446225; Manual; ACS PRO 2000 Size 30; XT; Not Illustrated
1шт.
REF
INSTRUCTION
CYLINDER/PIN KIT; ACS; XT; Vendor Part Number; 65595535; Incl. 11 - 16
1шт.
4
REF
INSTRUCTION
FITTING, BULKHEAD TEE; ACS; XT; Vendor Part Number; 52800803
2шт.
11
REF
INSTRUCTION
PIN, LOCKING; ACS; XT; Vendor Part Number; 40600850; 2 x 6-9/16 IN
2шт.
12
REF
INSTRUCTION
HEX BOLT; ACS; XT; Vendor Part Number; 60660520; 1/2-13 X 2 in
4шт.
13
REF
INSTRUCTION
PIN,ROLL; ACS; XT; Vendor Part Number; 40336700; 3/8 X 1-7/8 in
2шт.
