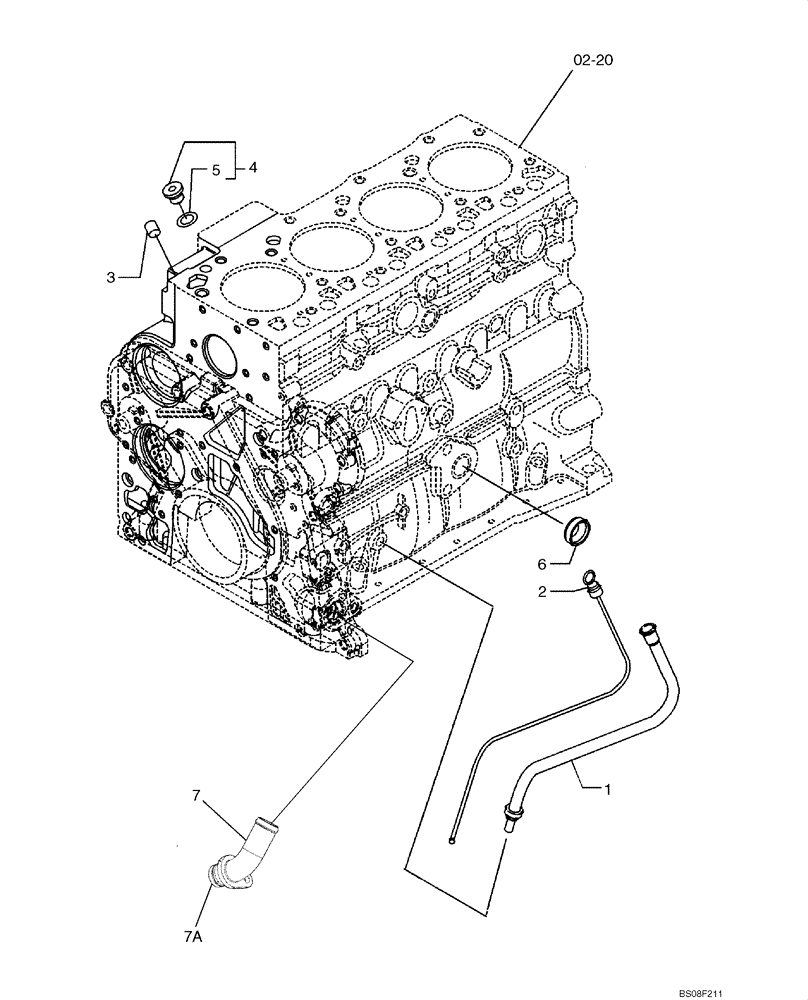

Запчасти Case 521E (02-09) - OIL FILL, ENGINE (02) - ENGINE

87752850

ENGINE

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; Includes Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11; Incl. Refs. 1 - 9

1шт.

2855812

DIPSTICK

TUBE ASSY. Incl. Refs. 1, 2

1шт.

1

2855813

TUBE

Oil Fill

1шт.

2

2855815

DIPSTICK

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

Threaded, Incl. Ref. 5

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

4895037

EXPANSION PLUG,32.03mm

1шт.

7

2853116

NECK FILLER

Incl. Ref. 7A

1шт.

7a

2852801

O-RING

1шт.

8

2853118

BOLT,Hex, M6 x 1 x 18mm

For Filler Neck, Not Illustrated

1шт.

9

2852485

BRACKET

Not Illustrated

1шт.
