Запчасти Case 521E (09-11) - BUCKETS - ATTACHMENT (XT LOADER) (09) - CHASSIS

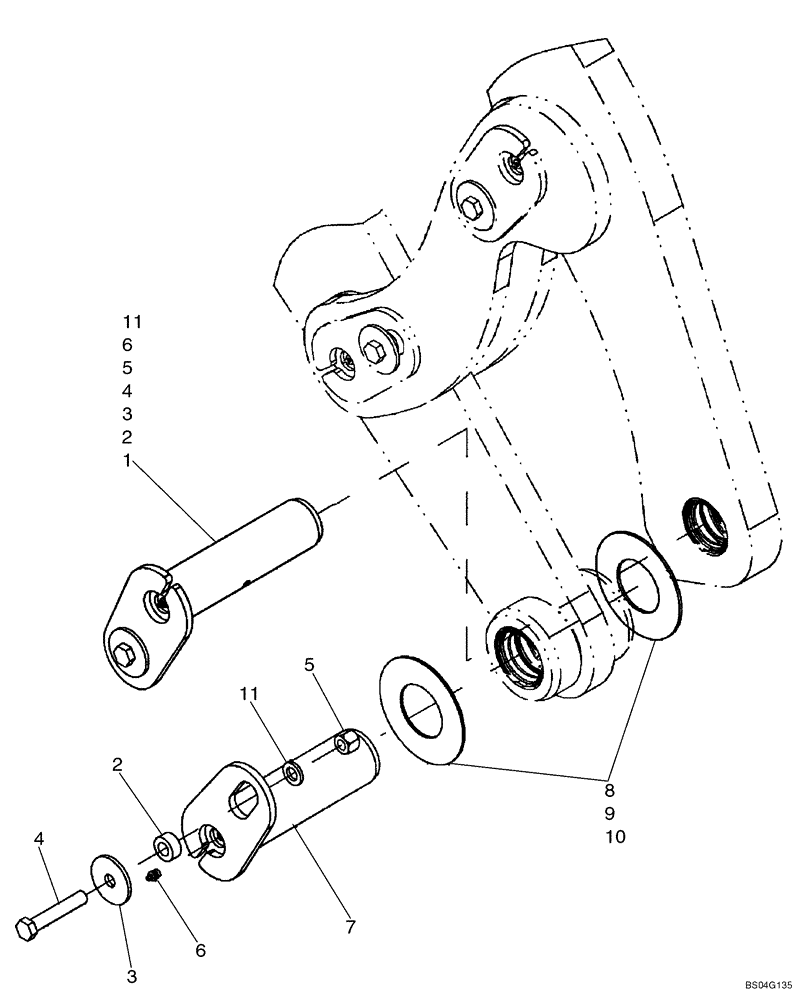

Схема запчастей Case 521E - (09-11) - BUCKETS - ATTACHMENT (XT LOADER) (09) - CHASSIS
8
5
5
3
11
10
11
4
2
9
3
6
4
6
1
7
2

Артикул

Название

Примечание

Количество

1

87446997

HEADED PIN

PIN, Lift Arm, XT; Gray

2шт.

2

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

7

87437353

HEADED PIN

Lift Arm, XT; Gray

2шт.

8

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 ID x 3.5mm Thick

1шт.

9

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

71.3 ID x 1.6mm Thick

1шт.

10

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 ID x 2.5mm Thick

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

Выбрано товаров: 11
