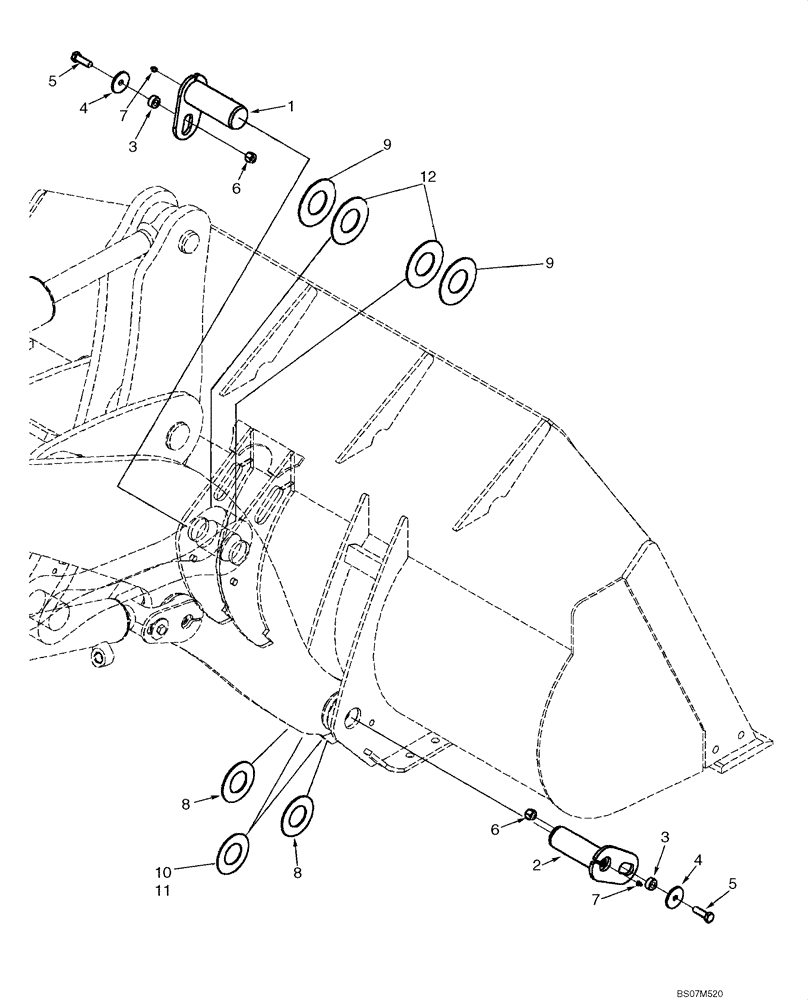

Запчасти Case 521E (09-10) - BUCKETS - ATTACHMENT (Z BAR LOADER) (09) - CHASSIS

1

411006A2

PIN ASSY.

Bucket; Tan; Service Option; 361139A2 Production Number

1шт.

2

411004A2

PIN ASSY.

Lift Arm; Tan; Service Option; 361130A2 Production Number

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

64.9 ID x 3.5 Thick

1шт.

9

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 ID x 3.5 Thick

1шт.

10

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

64.9 ID x 1.6 Thick

1шт.

11

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

64.9 ID x 2.5 Thick

1шт.

12

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 ID x 2.5 Thick

2шт.
