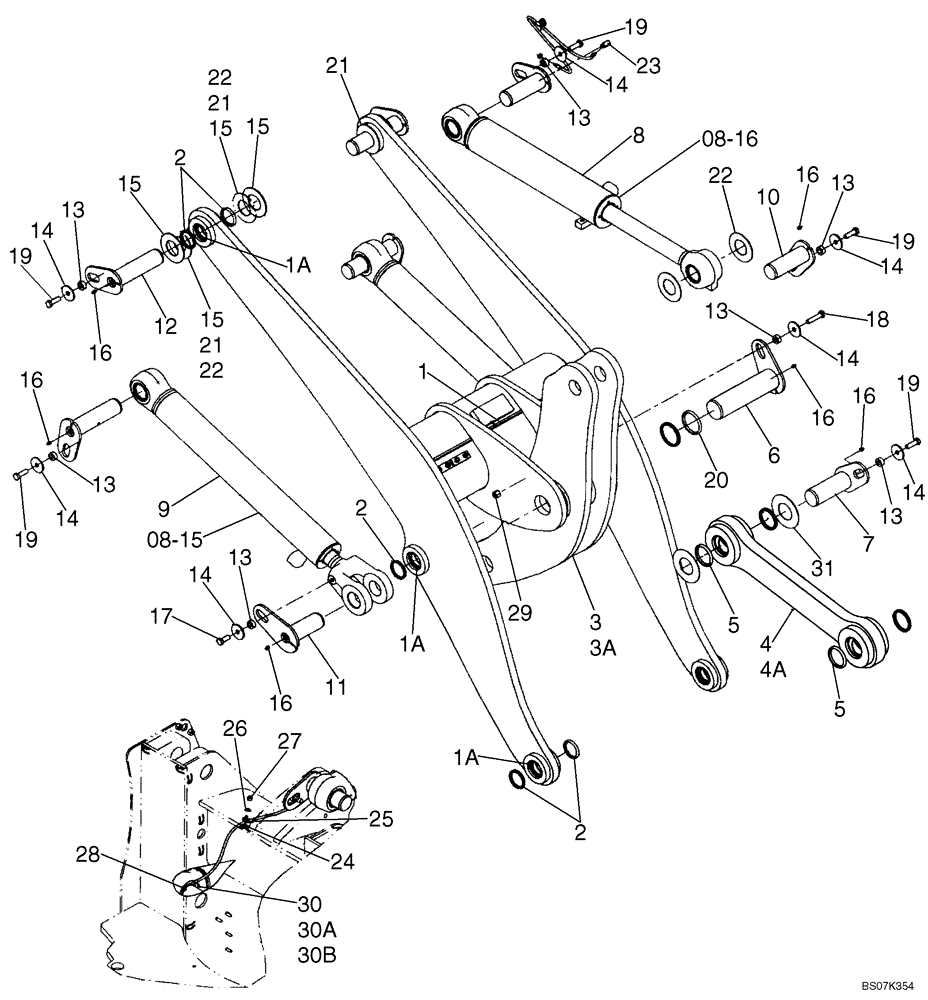

Запчасти Case 521E (09-07) - FRAME - LOADER LIFT (Z BAR LOADER) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

87343505

LIFT ARM

ARM, LIFT, Loader Lift; Incl. Ref. 1A;

1шт.

1a

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Arm

6шт.

2

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

12шт.

3

87330116

BELLCRANK

Incl. Ref. 3A

1шт.

3a

87613426

BUSHING

Bellcrank

2шт.

4

87395744

LINK,863.8mm L

Dump; Incl. Ref. 4A

1шт.

4a

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Dump Link

2шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Rod

4шт.

6

361136A1

PIN

Bellcrank Pivot

1шт.

7

361139A2

PIN ASSY.,69.8mm OD x 182mm L

Dump Link Pivot

1шт.

8

87366674

CYLINDER ASSY.

114 ID x 529 mm strk; Bucket Tilt; See Figure 08-16

1шт.

8

87366673R

REMAN-HYD CYLINDER

1шт.

8

87366673C

CORE-HYD CYLINDER

Return Number

1шт.

9

87366683

CYLINDER ASSY.

102 ID x 783 mm strk; Lift Cylinder; See Figure 08-15

2шт.

9

87366685R

REMAN-HYD CYLINDER

2шт.

9

87366685C

CORE-HYD CYLINDER

Return Number

2шт.

10

361130A2

PIN ASSY.

Lift Arm Pivot

2шт.

11

361133A2

PIN ASSY.

Lift Arm Pivot; Rod End

2шт.

12

361128A1

PIN

Lift Arm Pivot; Head End

4шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

20

365523A1

WIPER SEAL

Rod; 82.5

2шт.

21

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened; 64.9 ID; 1.6 thk

1шт.

22

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened; 64.9 ID; 2.5 thk

1шт.

23

328082A1

ELBOW

1/8 PT

1шт.

24

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

9.5mm; M10 Bolt

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

29

832-10416

NUT,M16 x 2, Cl 8

1шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. Refs. 30A, 30B

1шт.

30a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Not Illustrated

1шт.

30b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Not Illustrated

1шт.
