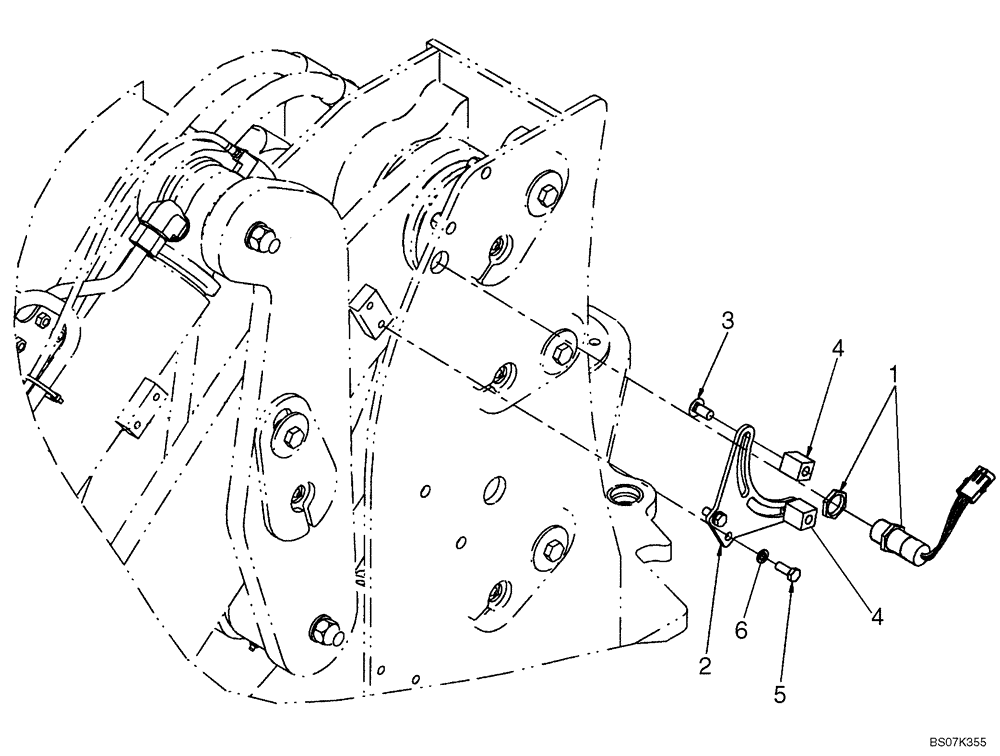

Запчасти Case 521E (09-06) - CONTROL - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (XT LOADER) (09) - CHASSIS

1

1546498C1

SWITCH

Proximity

1шт.

2

379149A2

MOUNTING PLATE

Target Mounting

1шт.

3

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

4

87437102

BLOCK

2шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.
