(02-08) - MUFFLER - EXHAUST SYSTEM

Запчасти Case 521E (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

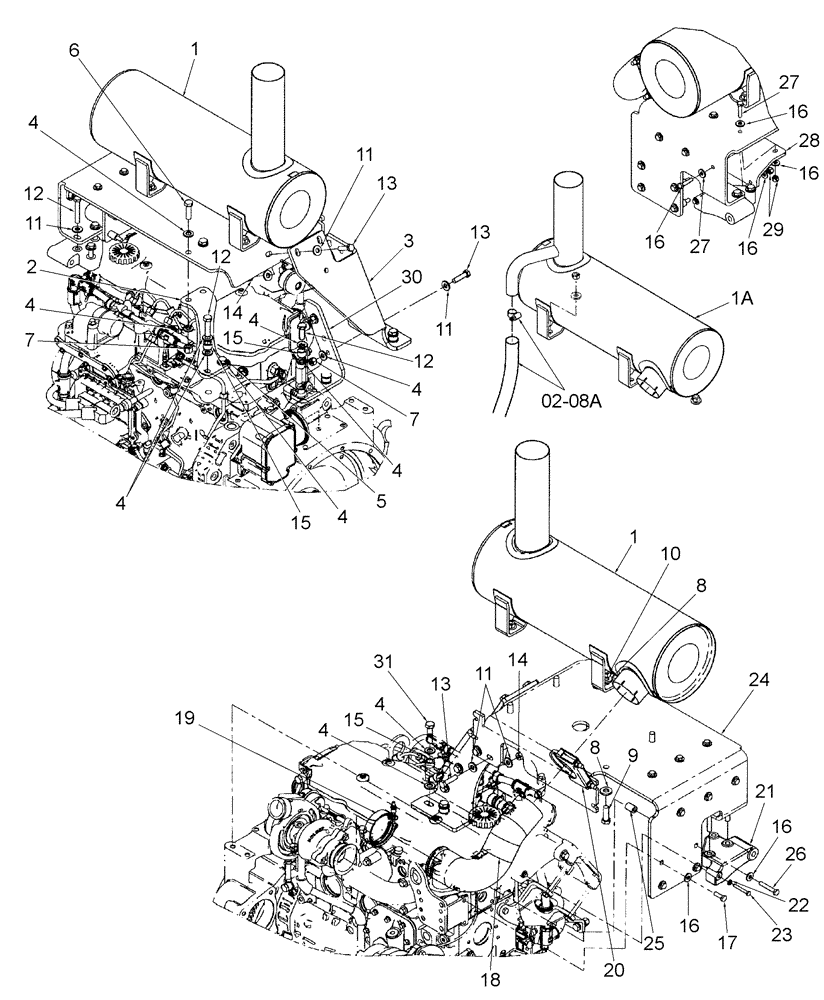

Схема запчастей Case 521E - (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE
11
29
1
4
11
16
1a
16
23
4
26
4
13
12
14
16
15
30
7
20
12
8
21
10
27
17
8
4
22
28
02-08a
7
15
4
16
4
4
15
3
16
4
5
2
16
4
14
12
24
25
19
13
1
27
11
6
11
31
9
18
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87650616

MUFFLER

Standard

1шт.

1a

87675952

MUFFLER

Aspirated W/ Spark Arrestor

1шт.

2

87725006

SUPPORT

Muffler, Serial Range: -C4170

1шт.

2

87749501

SUPPORT

Muffler, Start Serial: D4170

1шт.

3

87652509

SUPPORT

Muffler, Serial Range: -C4170

1шт.

3

87754713

SUPPORT

Muffler, Start Serial: D4168

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

15шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

9

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

10

829-1412

NUT,M12, Cl 10.9

4шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

15шт.

12

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

3шт.

13

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

15

D44696

BUSHING

5шт.

16

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

, Serial Range: -C4169

2шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

, Start Serial: D4169

16шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

18

87652510

TUBE,76.2 mm OD x 218, 145 mm L

Exhaust

1шт.

19

J903652

CLAMP

V Band

1шт.

20

299456A1

CLAMP,80.5mm ID

Muffler

1шт.

21

87652932

SUPPORT

A/C Compressor

1шт.

22

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

23

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

1шт.

24

87725008

SUPPORT

Muffler Mounting, Serial Range: -C4169

1шт.

24

87748963

SUPPORT

Muffler Mounting, Serial Range: D4169-C4170

1шт.

24

87753828

PLATE

Muffler Mounting, Start Serial: D4170

1шт.

25

87748964

SPACER

, Start Serial: D4169

2шт.

26

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

, Start Serial: D4169

2шт.

27

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

, Start Serial: D4170

6шт.

28

87753293

BRACKET

, Start Serial: D4170

1шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

, Start Serial: D4170

6шт.

30

87756347

SUPPORT

, Start Serial: D4168

1шт.

31

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

, Start Serial: D4168

5шт.

Выбрано товаров: 37
