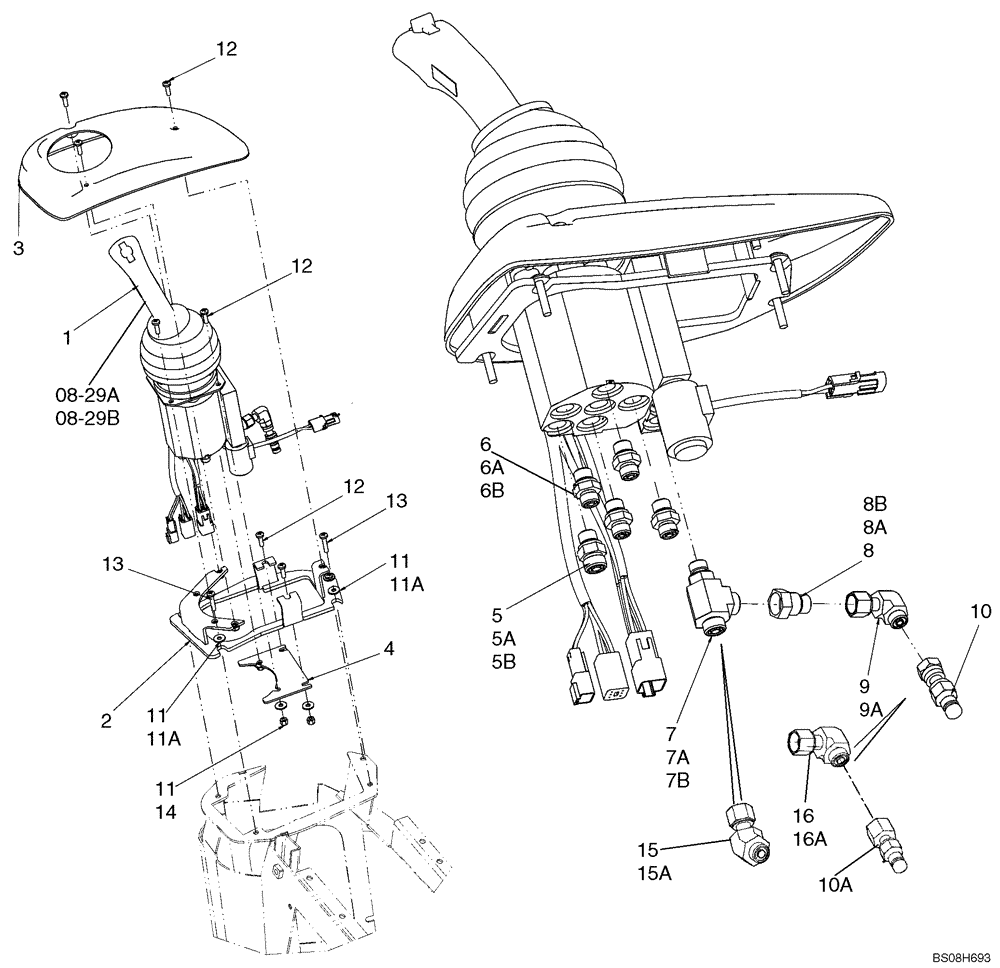

Запчасти Case 521E (08-29) - LOADER CONTROL - JOYSTICK CONTROL MOUNTING (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87340016
JOYSTICK
See Figures 08-29A, 08-29B
1шт.
2
87516506
ADAPTER
1шт.
3
87638910
BEZEL
Joystick
1шт.
4
87349019
ADAPTER
1шт.
5
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 5A, 5B
6шт.
5a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal
1шт.
5b
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
6
700-153
HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl. Refs. 6A, 6B
4шт.
6a
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
6b
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
7
700-406
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. Refs. 7A, 7B
1шт.
7a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal
2шт.
7b
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
8
201-145
REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS
Incl. Refs. 8A, 8B; If Used
1шт.
8a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
8b
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal
1шт.
9
701-329
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS
Incl. Ref. 9A
1шт.
9a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
10
190117A1
COUPLING
If Used
1шт.
10a
190119A1
COUPLING
If Used
1шт.
11
895-25006
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
4-8шт.
12
540-719
SCREW,Cross Pan Hd, M6 x 20
9шт.
13
840-1630
SCREW,Pan, M6 x 30mm, Cl 4.8
4шт.
15
87354477
ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw
Incl. Ref. 15A; If Used
1шт.
15a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. Ref. 16A; If Used
1шт.
16a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
Выбрано товаров: 29
