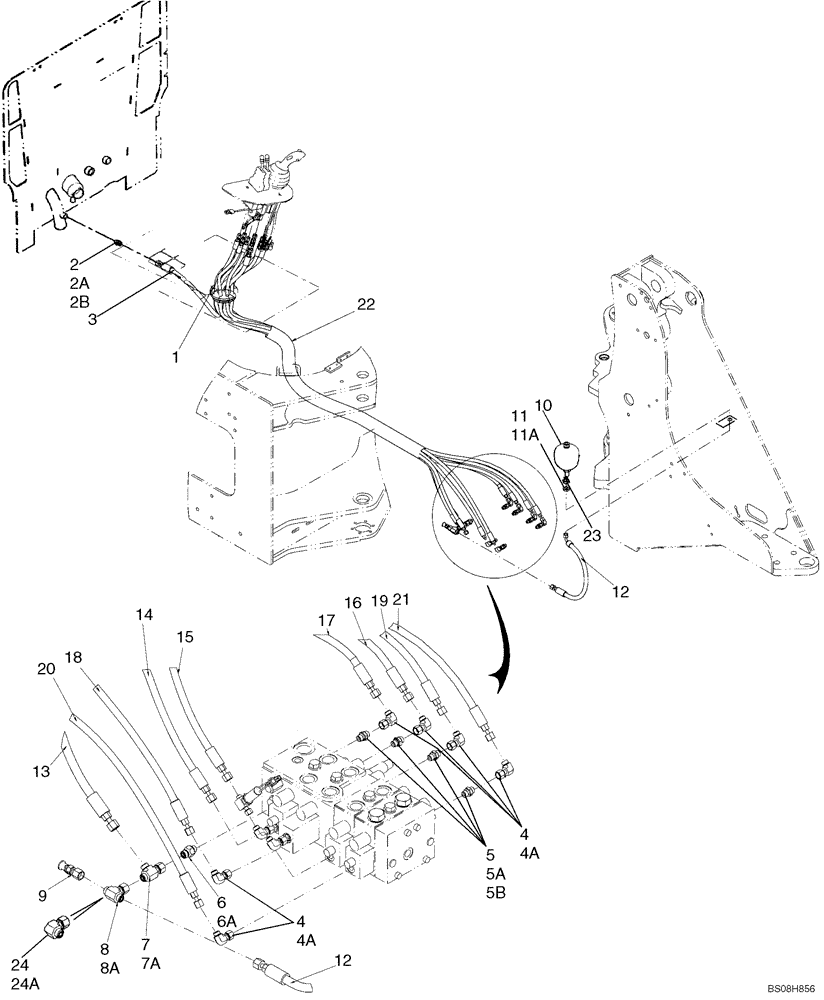

Запчасти Case 521E (08-25) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

REF

INSTRUCTION

TWO, THREE, AND FOUR SPOOL LOADER CONTROL HYDRAULICS, PILOT SUPPLY ACCUMULATOR

1шт.

1

380912A1

GROMMET

2шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 2A, 2B

1шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3

392059A1

HOSE ASSY.

Pilot to Tank; 1294 mm (50 - 15/16 in)

1шт.

4

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Ref. 4A

2-6шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 5A, 5B

2-6шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

391859A1

VALVE, CHECK

Incl. Ref. 6A

1шт.

6a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 8A; If used

1шт.

8a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

190119A1

COUPLING

Diagnostic, Incl. Ref. 9A; If Used

1шт.

9a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

8501047

ACCUMULATOR

Pilot Supply

1шт.

11

701-909

NUT,11/16" - 16

Incl. Ref. 11A

1шт.

11a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

87308338

HOSE ASSY.

Pilot Accumulator; 621 mm (24 - 7/16 in)

1шт.

13

87651218

HOSE

Pilot Pressure; 2565 mm (101 in)

1шт.

14

87651219

HOSE

Pilot Lift, Right; Yellow and Black Banding; 2742 mm (107 - 15/16 in)

1шт.

15

87651220

HOSE

Pilot Tilt, Left; Orange and Black Banding; 2657 mm (104 - 19/32 in)

1шт.

16

87651221

HOSE

Pilot Lift, Left; Red and Black Banding; 2672 mm (105 - 3/16 in)

1шт.

17

87651222

HOSE

Pilot Tilt, Left; Green and Black Banding; 2577 mm (101 - 29/64 in)

1шт.

18

87651223

HOSE

Pilot 3 Spool, Right; Red and White Banding; 2865 mm (112 - 3/4 in); If Used

1шт.

19

87651224

HOSE

Pilot 3 Spool, Left; Yellow and White Banding; 2806 mm (110 - 1/2 in); If Used

1шт.

20

87651225

HOSE

Pilot 4 Spool, Right; Green and White Banding; 2932 mm (115 - 7/16 in); If Used

1шт.

21

87651226

HOSE

Pilot 4 Spool, Left; Orange and White Banding; 2917 mm (114 - 27/32 in); If Used

1шт.

22

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 24A; If Used

1шт.

24a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
