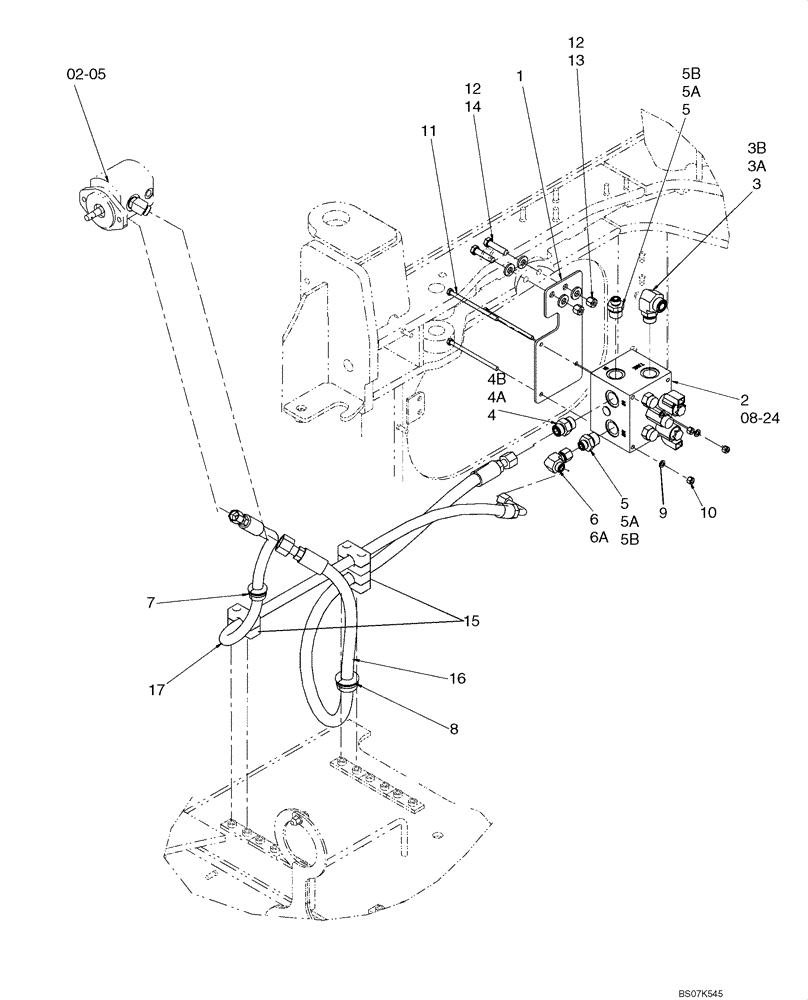

Запчасти Case 521E (08-22A) - HYDRAULICS - FAN DRIVE, FAN SPEED AND REVERSER (08) - HYDRAULICS

1

87724971

BRACKET

Fan Relief Valve Mounting

1шт.

2

8500565

HYDRAULIC VALVE

Fan Speed and Reverser, See Figure 08-24

1шт.

3

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 3A, 3B

1шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl Ref 4A, 4B

1шт.

4a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. Refs. 5A, 5B

2шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 6A

1шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

7

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

435214A1

GROMMET

1 x 1.75

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

11

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

3шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

15

372453A1

BLOCK

3шт.

16

376179A2

HOSE ASSY.

Fan Drive, 1935 mm (76 - 3/16 in)

1шт.

17

87704887

HOSE ASSY.

Fan Drive, 1689 mm (66 - 1/2 in)

1шт.
