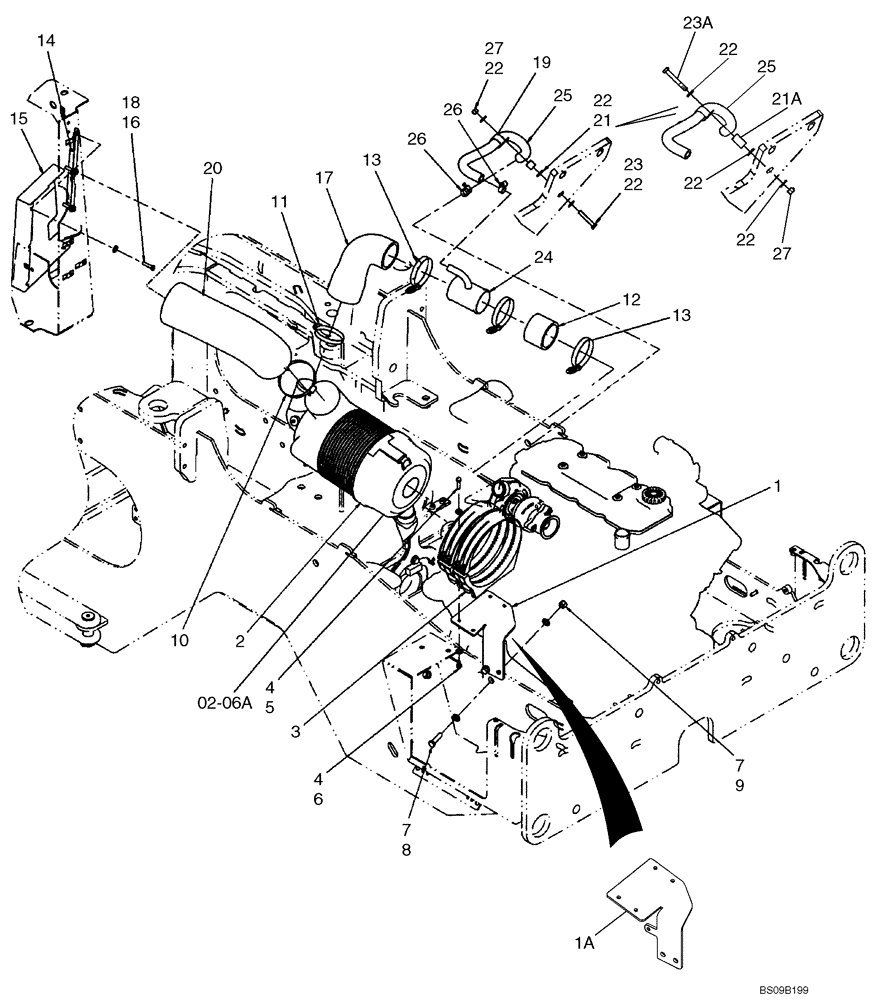

Запчасти Case 521E (02-06) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

87725005

SUPPORT

Air Cleaner; No Longer Available, Order 87479708, Ref. 1A

1шт.

1a

87479708

SUPPORT

Air Cleaner, With Aspirator Valve Mount

1шт.

2

373391A1

AIR CLEANER

See Figure 02-06A

1шт.

3

380813A1

BRACKET

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

5

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

11

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

12

87400915

AIR INTAKE TUBE,76 mm ID x 65 mm L

Turbo

1шт.

13

L116820

CLAMP,82.55mm - 104.78mm

3шт.

14

87433573

ANGLE

1шт.

15

87433574

SCREEN

1шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

17

87619891

AIR INTAKE TUBE,89 mm ID

Air Cleaner to Turbo

1шт.

18

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

19

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

1шт.

20

87707250

AIR INTAKE TUBE,114mm ID x 434mm L, SAE J200

Air Cleaner

1шт.

21

411310A1

SPACER

20 mm (25/32 in); If Used

1шт.

21a

D26770

SPACER

38 mm (1 - 1/2 in); If Useed

1шт.

22

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

23

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

Used With Spacer 411310A1, Ref. 21; If Used

1шт.

23a

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

Used With Spacer D26770, Ref. 21A; If Used

1шт.

24

87725003

TUBE,76.2 mm OD x 110, 20 mm L

W/ CCV Valve

1шт.

25

87663407

HOSE,0.75" ID, SAE 30R2

Crankcase Vent

1шт.

26

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
