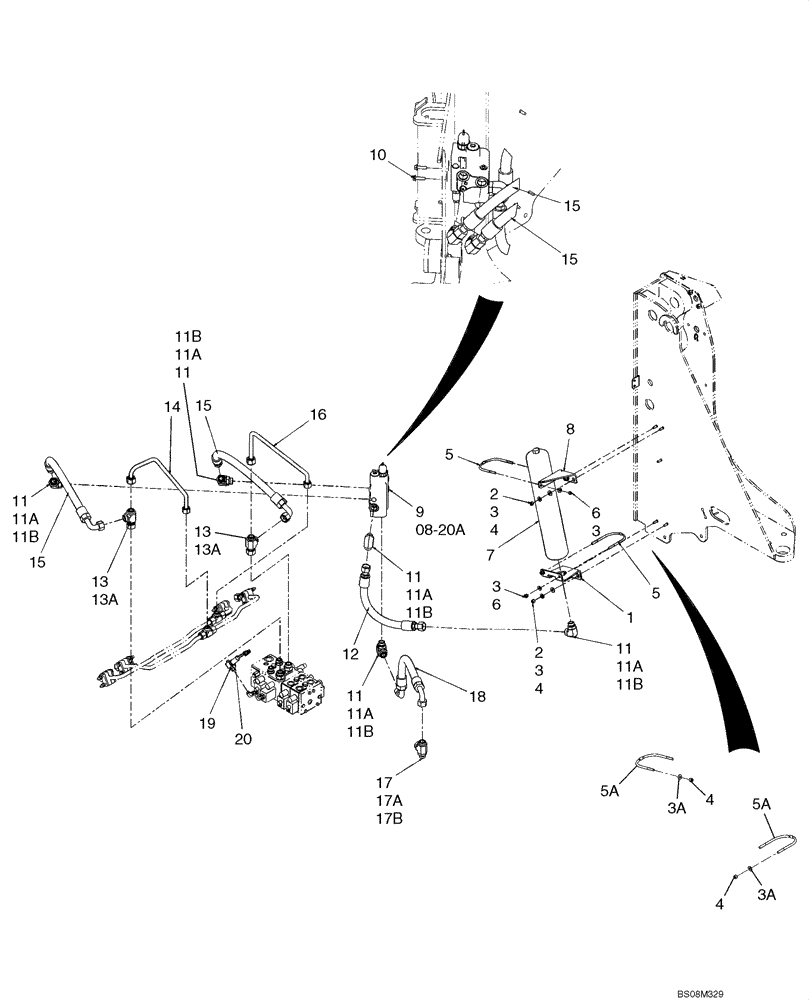

Запчасти Case 521E (08-20) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

1

87393646

BRACKET

Ride Control Accumulator, Bottom

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

If Used; Used With Standard U-Bolt

4-8шт.

3a

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used; Used With Metric U-Bolt

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

Used With Metric U-Bolt

4-8шт.

5

L128472

U-BOLT

Standard, 3/8"-16 Thread

2шт.

5a

87492028

U-BOLT

Metric, M10 x 1.5 Thread

2шт.

7

87393434

ACCUMULATOR,3.8L

Ride Control

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

If Used; Used with Standard U-Bolt

4шт.

8

87403347

BRACKET

Ride Control Accumulator, Top

1шт.

9

87393431

VALVE

Ride Control; See Figure 08-20A

1шт.

10

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 11A, 11B

5шт.

11a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

11b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

12

87452278

HOSE ASSY.

Ride Control Accumulator; 588 mm (23 - 1/8 in)

1шт.

13

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl. Ref. 13A

2шт.

13a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

14

87452281

TUBE,16mm ID x19.05mm OD x 248mm L

Ride Control, Head

1шт.

15

87452280

HOSE ASSY.

Head Or Rod; 873mm (34-3/8 in)

2шт.

16

87452283

TUBE,16mm ID x 19mm OD x 298mm L

Ride Control, Rod

1шт.

17

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 17A, 17B

1шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

17b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

87452279

HOSE ASSY.

Ride Control Tank; 723 mm (28 - 15/32 in)

1шт.

19

397547A1

FITTING

Pressure Switch

1шт.

20

446183A1

PRESSURE SWITCH

Rollback

1шт.
