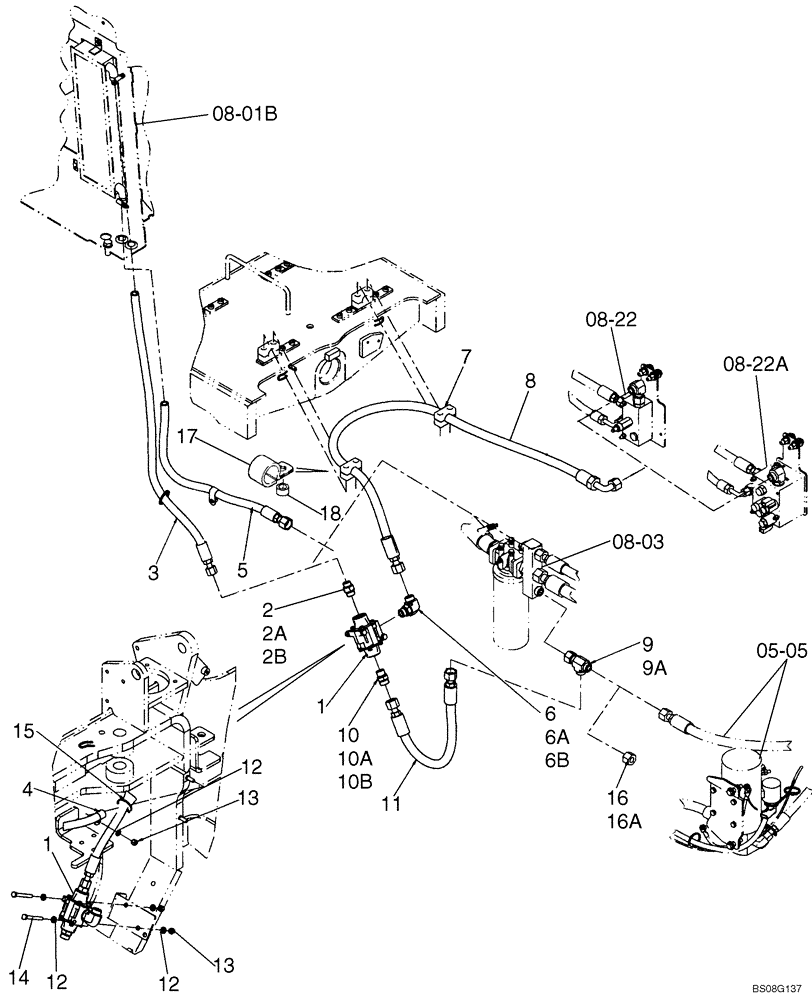

Запчасти Case 521E (08-19B) - HYDRAULICS - THERMAL BYPASS (08) - HYDRAULICS

1

87326981

BY-PASS VALVE

Thermal; Incl. Ref. 1A

1шт.

1a

87328377

REPAIR KIT

For 87326981 Thermal Bypass Valve; Contains: Thermal Element Assy And Seals; Not Illustrated

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl Ref 2A, 2B

1шт.

2a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3

87703589

HOSE ASSY.,Hyd, 5/8" ID x 1138mm L

Bypass Valve to Cooler; 1138 mm (44 - 13/16 in)

1шт.

4

515-25254

CLAMP,1", Insul, 1/2" Bolt

If Used

1шт.

5

367872A1

HOSE ASSY.

Cooler Return; 941 mm (37 - 1/32 in)

1шт.

6

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 6A, 6B

1шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

372453A1

BLOCK

Mounting

1-2шт.

8

87634159

HOSE ASSY.,Hyd, 3/4" ID x 1739mm L

Fan Valve to Bypass; 1739 mm (68 - 15/32 in)

1шт.

9

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 9A

1шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 10A, 10B

1шт.

10a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

87453664

HOSE ASSY.,Hyd, 3/4" ID x 712mm L

Bypass to Cooler; 712 mm (28 - 1/32 in)

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4-5шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2-3шт.

14

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

16

701-907

CAP,1-3/16" - 12

Incl. Ref. 16A

1шт.

16a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

If Used

1шт.

18

D44696

BUSHING

If Used

1шт.
