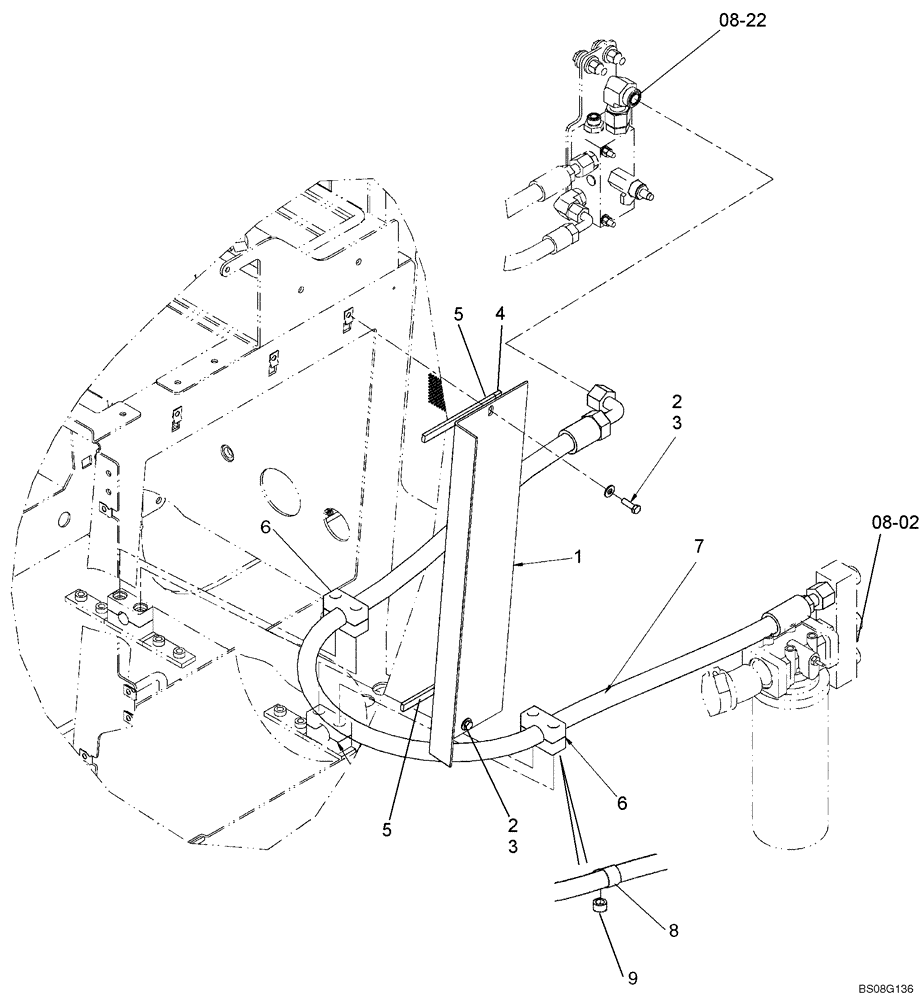

Запчасти Case 521E (08-19) - HYDRAULICS - STANDARD BYPASS (08) - HYDRAULICS

1

385688A1

PLATE

Used On Models W/Out Hydraulic Oil Cooler

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

4

382258A1

OIL SEAL

Oil Cooler

1шт.

5

382260A1

SEAL

Hydraulic Cooler

2шт.

6

372453A1

BLOCK

Tube Mounting

1-2шт.

7

87638830

HOSE ASSY.

Cooler Bypass, Standard; 1873 mm (73 - 3/4 in)

1шт.

8

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

If Used

1шт.

9

D44696

BUSHING

If Used

1шт.
