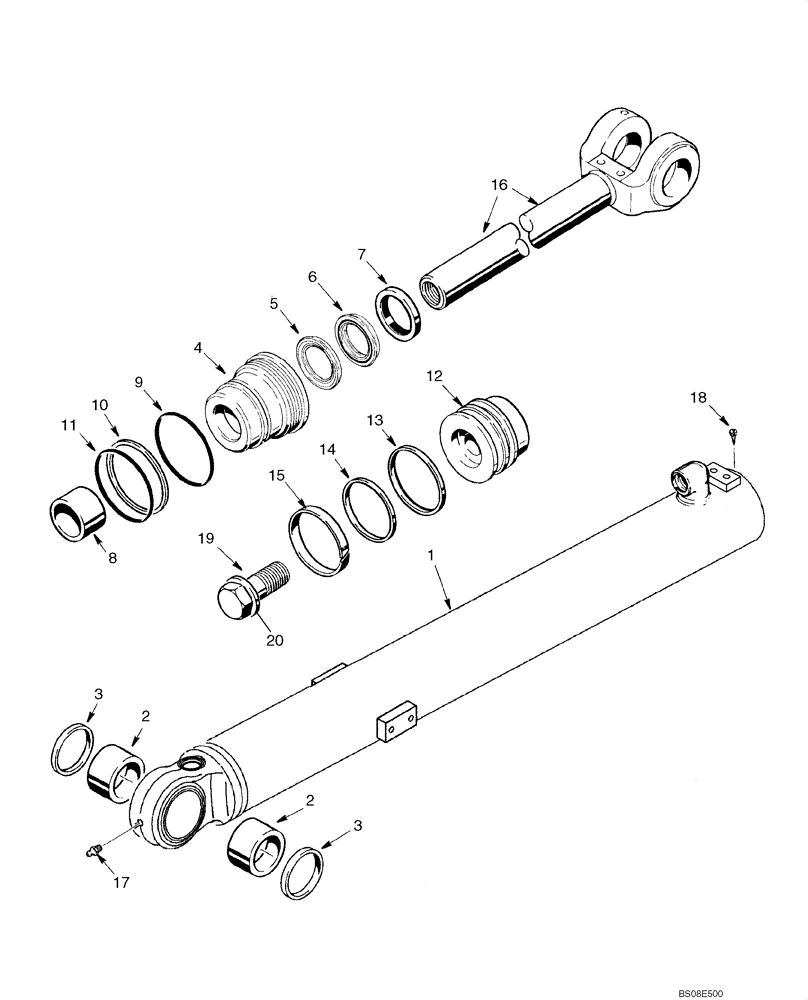

Запчасти Case 521E (08-18) - CYLINDER ASSY - LOADER BUCKET (XT LOADER) (08) - HYDRAULICS

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

XT Bucket Tilt, 101mm ID x 758.3mm Stroke; Incl. Refs. 1 - 20

1шт.

87446958R

REMAN-HYD CYLINDER

521E WHEEL LOADER TIER 3 (NA) (1/08-)

1шт.

87446958C

CORE-HYD CYLINDER

Return Number

1шт.

360979A1

SEAL KIT

Seal Service, XT Tilt Cylinder; Incl. Refs. 5 - 11, 13, 15 And G102285 Piston Seal For Service Replacement of Ref. 14 Piston Seal

1шт.

1

87446960

BARREL,101.45 mm ID x 990.8 mm L

Tube, Incl. Ref. 2

1шт.

2

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

2шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

337557A1

GLAND

Assembly; Incl. Refs. 4 - 11

1шт.

4

337555A1

GLAND

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer, Incl. Ref. 5, 6; Not Serviced Separately, Order Seal Kit 360979A1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD; Order Seal Kit 360979A1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD; Order Seal Kit 360979A1

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

8

336039A1

BUSHING

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

11

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

337552A1

PISTON

Incl. Refs. 12 - 15

1шт.

12

337551A1

PISTON

Dia. 101.6

1шт.

13

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

Loader

1шт.

14

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

Piston, Dia. 101.6

1шт.

15

336044A1

RING

Wear; Dia 101.6

1шт.

16

87437489

PISTON ROD

57.2mm dia

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.
