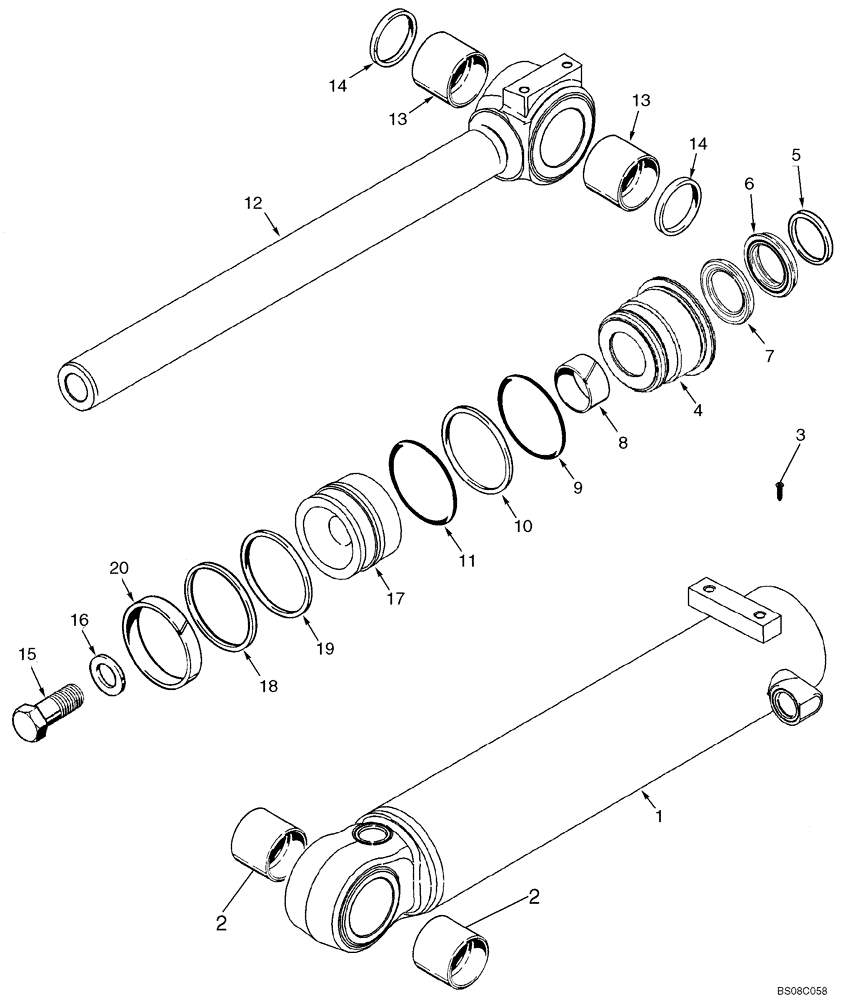

Запчасти Case 521E (08-17) - CYLINDER ASSY - LOADER BUCKET (XR LOADER) (08) - HYDRAULICS

87695545

CYLINDER,Double Acting, 63.5mm Rod, 529.2mm Stroke

XR Bucket Tilt, 114 ID x 530 mm Stroke; Incl. Refs. 1 - 20

1шт.

87695546R

REMAN-HYD CYLINDER

XR Bucket Tilt, 114 ID x 530 mm Stroke

1шт.

87695546C

CORE-HYD CYLINDER

Return Number

1шт.

87434291

SEAL KIT

XR Tilt Cylinder; Incl. Refs. 5 - 11, 19, 20 and Expandable Seal 361000A1 For Service Replacement of Ref. 18 Piston Seal

1шт.

1

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. Ref. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

63.5 Dia.

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

336379A1

GLAND

Assembly; Incl. Refs. 4 - 11

1шт.

4

336378A1

GLAND

Packing

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Refs. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

336041A1

BUSHING

Rod, 63.5 Dia.

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

Backup

1шт.

11

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

12

398355A1

ROD

Assy, 63.5 Dia; Incl. Ref. 13

1шт.

13

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

63.5 Dia.

2шт.

14

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5 Dia

4шт.

15

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

Washer

1шт.

336377A1

PISTON

Incl. Refs. 17 - 20

1шт.

17

336376A1

PISTON

114.3 Dia Cylinder; 63.5 Dia Rod

1шт.

18

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston 114.3 Dia.

1шт.

19

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Loader, 114.3 Dia.

1шт.

20

336045A1

RING

Wear

1шт.
