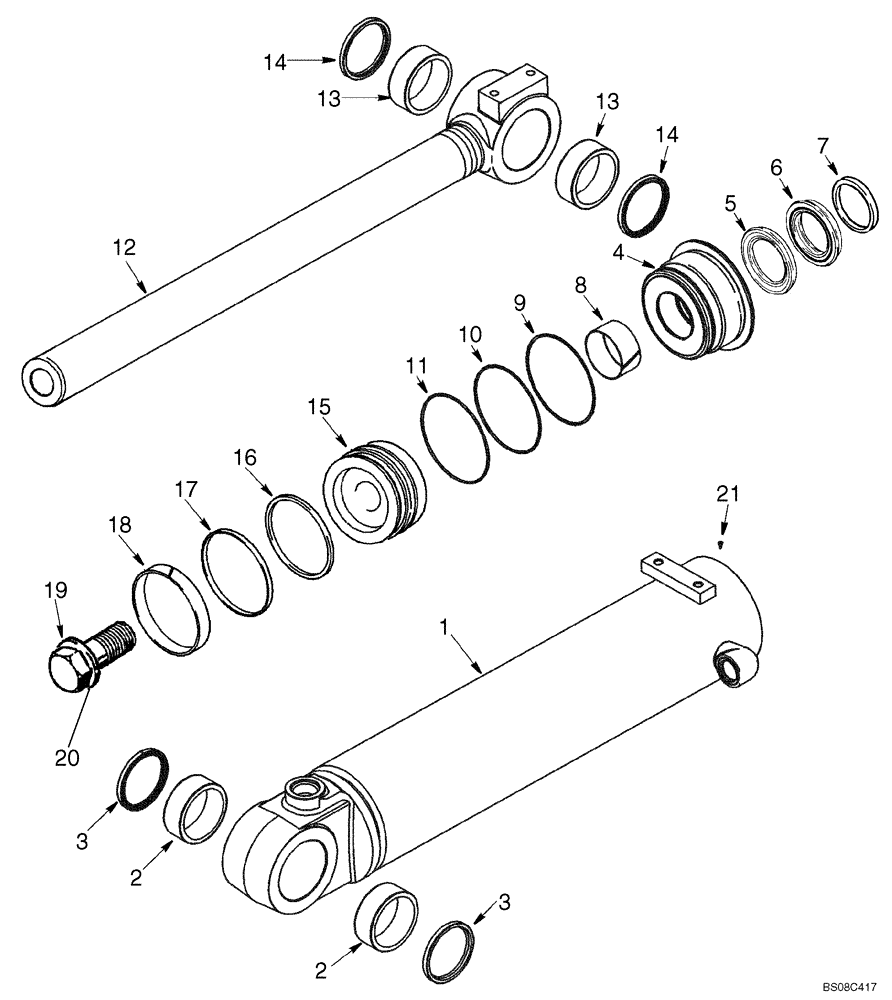

Запчасти Case 521E (08-16) - CYLINDER ASSY - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

87366674

CYLINDER ASSY.

Z-Bar Bucket Tilt, 114 ID x 529 mm; Incl. Refs. 1 - 21

1шт.

87366673R

REMAN-HYD CYLINDER

521E TIER 3 (NA) (1/08-), Reman For New P/N 87366674

1шт.

87366673C

CORE-HYD CYLINDER

Return Number

1шт.

87434291

SEAL KIT

Incl. Refs. 5 - 11, 16, 18, And 361000A1 Seal For Service Replacement of Ref. 17 Piston Seal

1шт.

1

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. Ref. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

336379A1

GLAND

Incl. Ref. 4 - 11; Order Components

1шт.

4

336378A1

GLAND

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. Rod And Buffer Seals, Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

8

336041A1

BUSHING

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

11

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

12

336391A1

ROD ASSY.

63,5 mm dia; Incl. Ref. 13

1шт.

13

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

14

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

336377A1

PISTON

Assembly; Incl. Refs. 15 - 18

1шт.

15

336376A1

PISTON

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Loader

1шт.

17

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston

1шт.

18

336045A1

RING

Wear

1шт.

19

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
