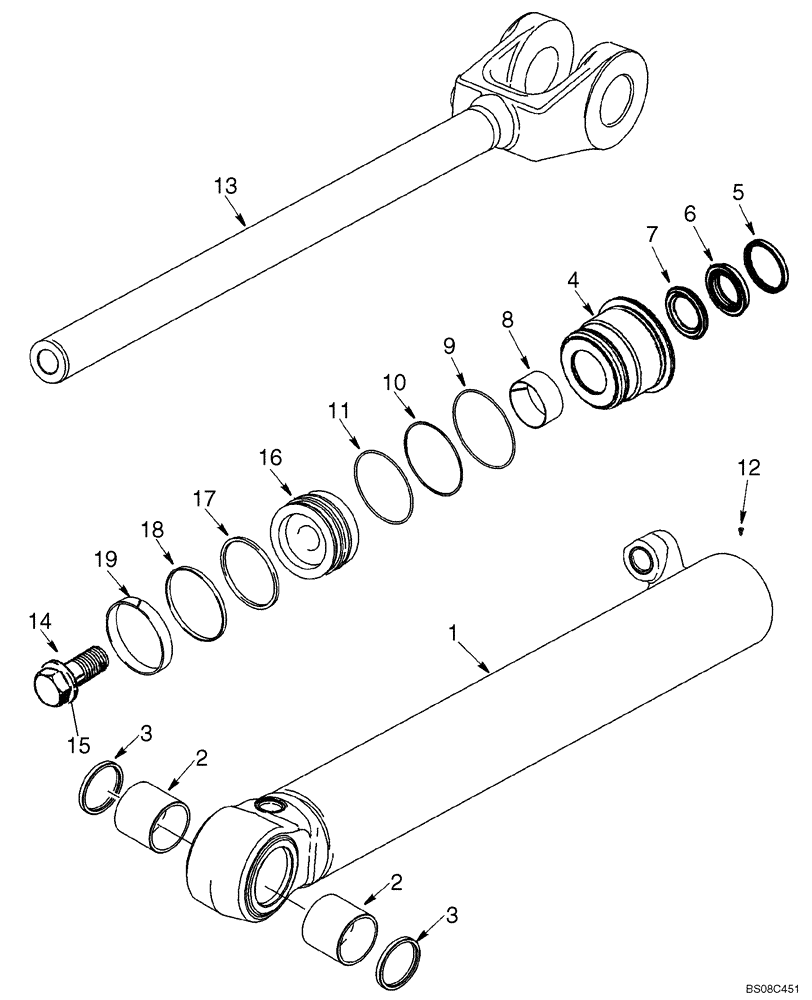

Запчасти Case 521E (08-15) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

87366683

CYLINDER ASSY.

Lift, 101.6 ID x 783 mm strk; Incl. Refs. 1 - 19

2шт.

87366685R

REMAN-HYD CYLINDER

521E WHEEL LOADER TIER 3 (NA) (1/08-); Reman For New P/N 87366683

2шт.

87366685C

CORE-HYD CYLINDER

Return Number

1шт.

87434292

SEAL KIT

Incl. Refs. 5 - 11, 17, 19, And G102285 Piston Seal For Service Replacement of Ref. 18 Seal

1шт.

1

337567A1

TUBE,1015.7 mm Length

Incl. Ref. 1A

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

337557A1

GLAND

Assembly; Incl. Ref. 4 - 11

1шт.

4

337555A1

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. Rod Seal and Buffer Seals, Refs.6, 7; Not Serviced Separately, Order Seal Kit 87434292

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD; Order Seal Kit 87434292

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER; Order Seal Kit 87434292

1шт.

8

336039A1

BUSHING

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

11

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

12

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

13

87317752

PISTON ROD

Rod Assembly 57.2mm Diameter

1шт.

14

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl. Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

337552A1

PISTON

Incl. Ref. 16 - 19

1шт.

16

337551A1

PISTON

Dia. 101.6

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

18

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

Dia. 101.6

1шт.

19

336044A1

RING

Wear; Dia 101.6

1шт.
