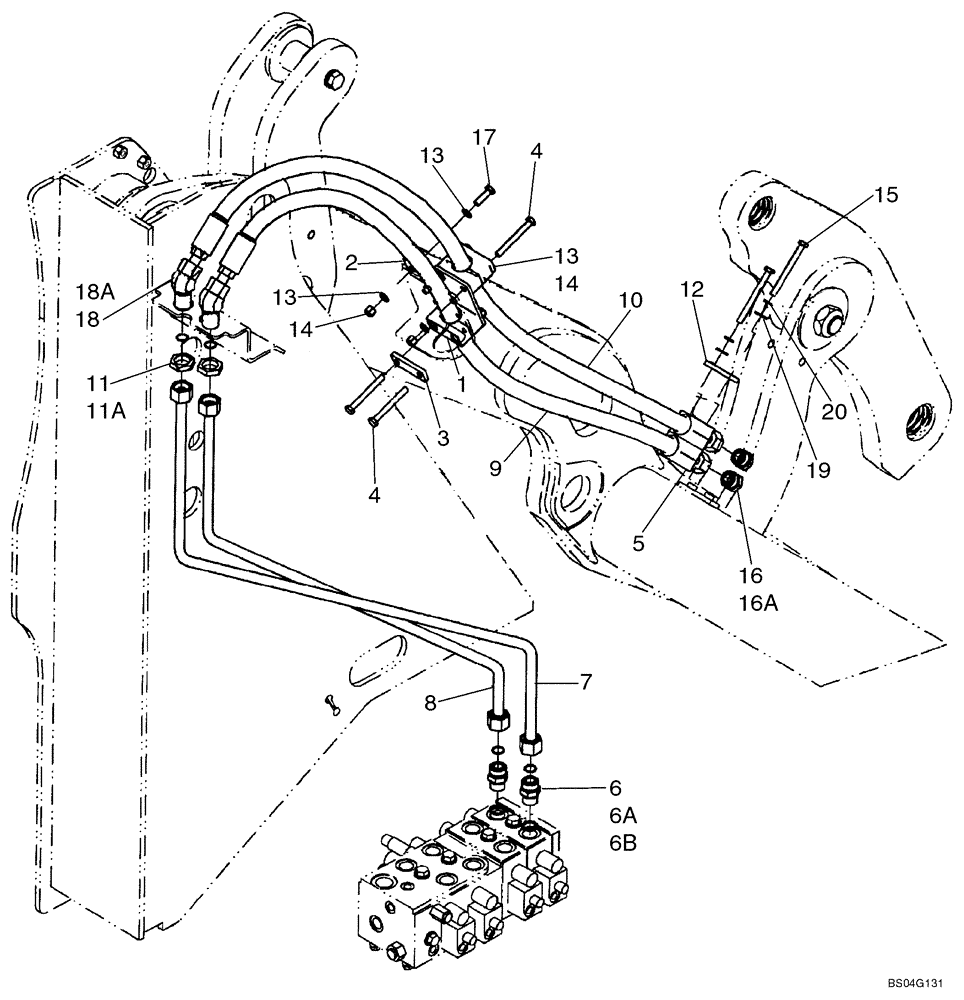

Запчасти Case 521E (08-10A) - HYDRAULICS - LOADER AUXILIARY - 4 SPOOL - (XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER, FOURTH SPOOL HYDRAULICS

1шт.

1

87452747

CLAMP,33.4mm ID

Mounting

2шт.

2

87444440

BRACKET

Accesory Hose Mounting

1шт.

3

8500858

PLATE

Clamp Cover

2шт.

4

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

5

372453A1

BLOCK

Mounting

2шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Ref. 6A, 6B

2шт.

6a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

7

87448148

HYD TUBE,16mm ID x19mm OD x 934mm L

Right Hand

1шт.

8

87448150

HYD TUBE,16mm ID x 19mm OD x 854mm L

Left Hand

1шт.

9

87304919

HOSE ASSY.

XT Lower; 1990mm ( 78-3/8 in )

1шт.

10

87304918

HOSE ASSY.

XT Upper; 2120mm ( 83-1/2 in )

1шт.

11

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. Ref.11A

2шт.

11a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

367658A1

PLATE

Clamp Cover

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

15

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

16

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. Ref. 16A

2шт.

16a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

18

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl. Ref. 18A

2шт.

18a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

892-11010

LOCK WASHER,M10

2шт.
