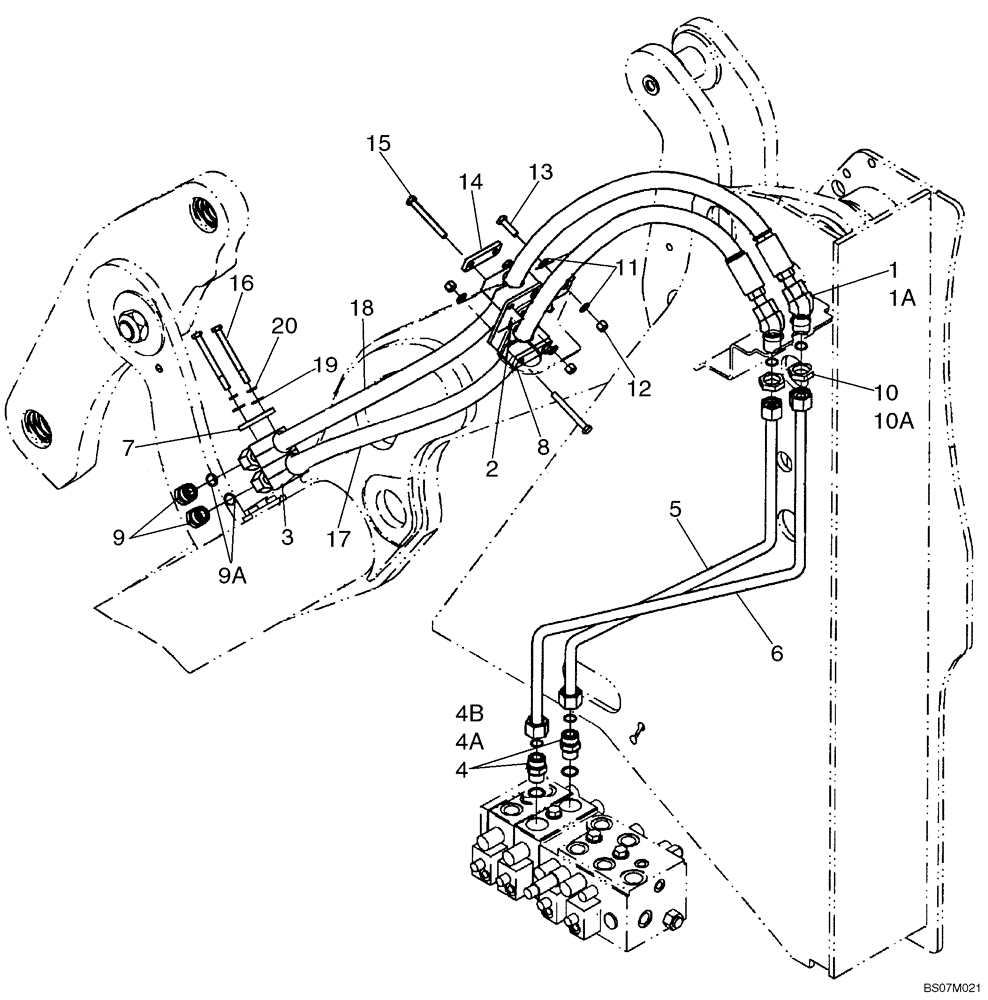

Запчасти Case 521E (08-10) - HYDRAULICS - LOADER AUXILIARY (XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER, THIRD SPOOL HYDRAULICS

1шт.

1

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl. Ref. 1A

2шт.

1a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

2

87444440

BRACKET

Accesory Hose Mounting

1шт.

3

372453A1

BLOCK

Mounting

2шт.

4

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 4A, 4B

2шт.

4a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5

87448141

HYD TUBE,19.05 mm OD x 854, 464 mm L

RH; No Longer Available, Order 87480862 Tube, Ref. 5A

1шт.

5a

87480862

HYD TUBE,19.05 mm OD x 854, 464 mm L

RH

1шт.

6

87448143

HYD TUBE,19.05 mm OD x 934, 553 mm L

LH

1шт.

7

367658A1

PLATE

Clamp Cover

1шт.

8

87452747

CLAMP,33.4mm ID

Mounting

2шт.

9

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. Ref. 9A

2шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. Ref. 10A

2шт.

10a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

14

8500858

PLATE

Clamp Cover

2шт.

15

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

16

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

17

87304919

HOSE ASSY.

XT Lower; 1990mm (78-3/8 in)

1шт.

18

87304918

HOSE ASSY.

XT Upper; 2120mm (83-1/2 in)

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

892-11010

LOCK WASHER,M10

2шт.
