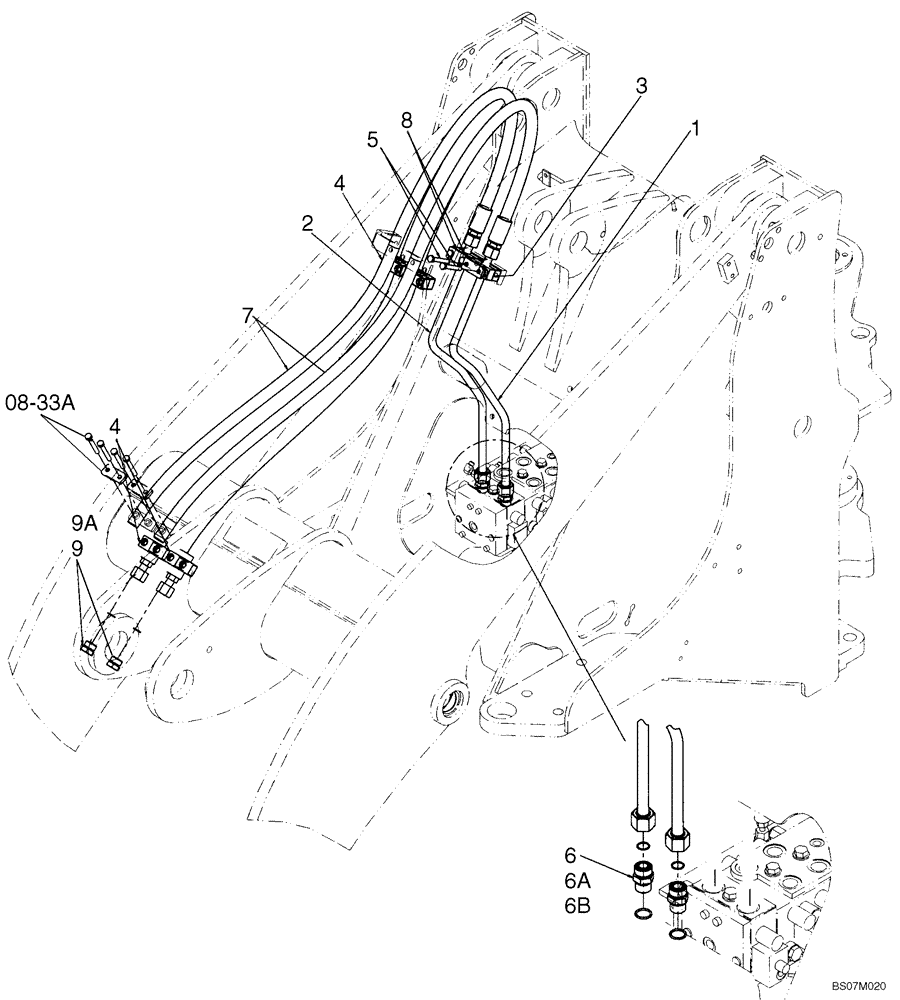

Запчасти Case 521E (08-09) - HYDRAULICS - LOADER AUXILIARY (XR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XR LOADER, THIRD SPOOL HYDRAULICS

1шт.

1

87405793

HYD TUBE,19.05 mm OD x 610, 130 mm L

LH

1шт.

2

87405795

HYD TUBE,19.05 mm OD x 610, 150 mm L

RH

1шт.

3

379374A1

BLOCK

Mounting

2шт.

4

372453A1

BLOCK

Mounting

4шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 6A, 6B

2шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87700044

HOSE ASSY.

Third Spool XR, 2086 mm (82 - 1/8 in)

2шт.

8

367658A1

PLATE

Mounting Block Cover

2шт.

9

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. Ref. 9A

2шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
