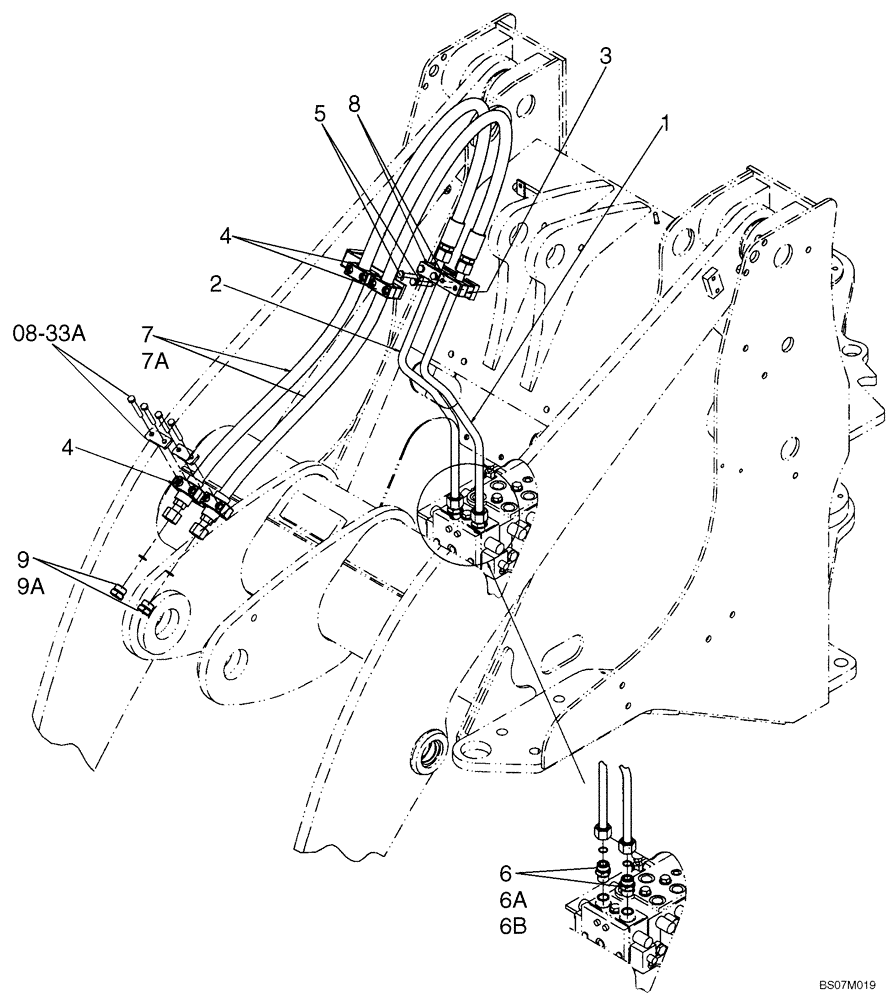

Запчасти Case 521E (08-08) - HYDRAULICS - LOADER AUXILIARY (Z BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR LOADER, THIRD SPOOL HYDRAULICS

1шт.

1

87405793

HYD TUBE,19.05 mm OD x 610, 130 mm L

Left Hand Loader Auxiliary

1шт.

2

87405795

HYD TUBE,19.05 mm OD x 610, 150 mm L

Right Hand Loader Auxiliary

1шт.

3

379374A1

BLOCK

Tube Mounting

2шт.

4

372453A1

BLOCK

Tube Mounting

4шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Ref. 6A, 6B

2шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

391131A2

HOSE ASSY.

Third Spool, 1774 mm (69-7/8 in), Incl. Ref. 7A

2шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

8

367658A1

PLATE

Clamp Cover

2шт.

9

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. Ref. 9A

2шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.
