(02-04) - COOLER, CHARGE AIR - HOSES AND TUBES

Запчасти Case 521E (02-04) - COOLER, CHARGE AIR - HOSES AND TUBES (02) - ENGINE

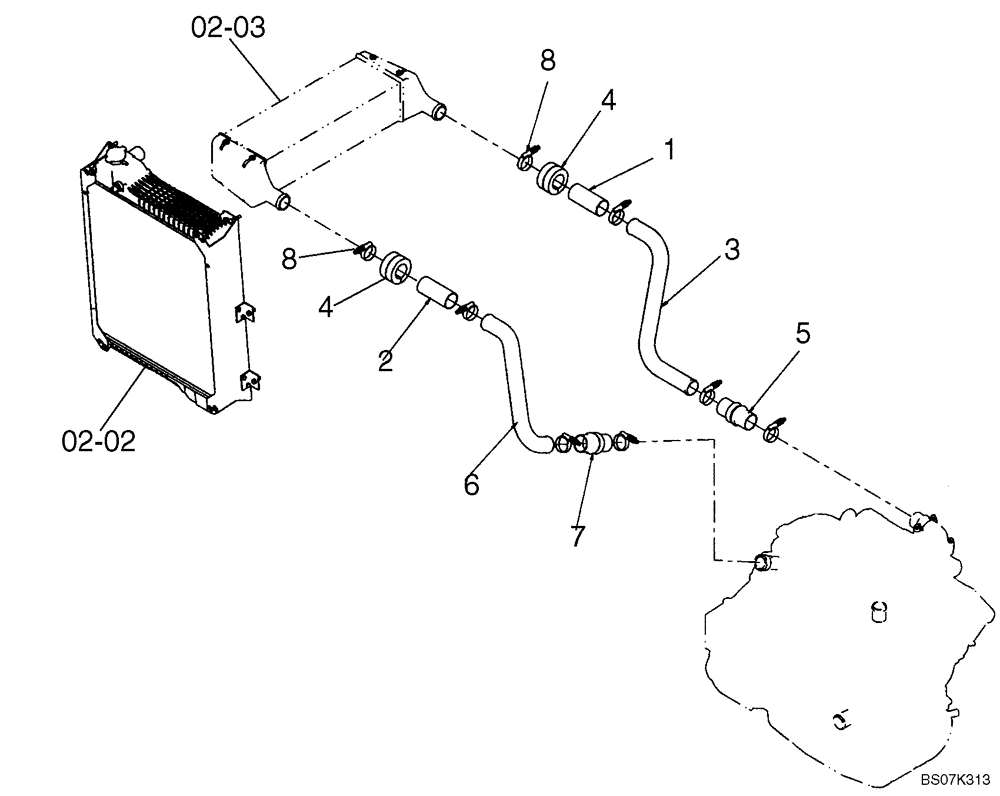

Схема запчастей Case 521E - (02-04) - COOLER, CHARGE AIR - HOSES AND TUBES (02) - ENGINE
4
5
4
8
02-02
7
02-03
8
2
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340020

HOSE,50.80mm ID x 127mm L

Air Cooler

1шт.

2

87340023

HOSE,50.80mm ID x 127mm L

Air Cooler

1шт.

3

87615061

AIR INTAKE TUBE

Charge Air

1шт.

4

402614A1

SEAL

Charge Air Tubes

2шт.

5

87617020

HOSE ASSY.

Charge Air, 50 x 127 mm

1шт.

6

87615060

AIR INTAKE TUBE

Charge Air - Turbo

1шт.

7

87340027

HOSE,50.80mm ID x 127mm L

Charge Air

1шт.

8

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.
