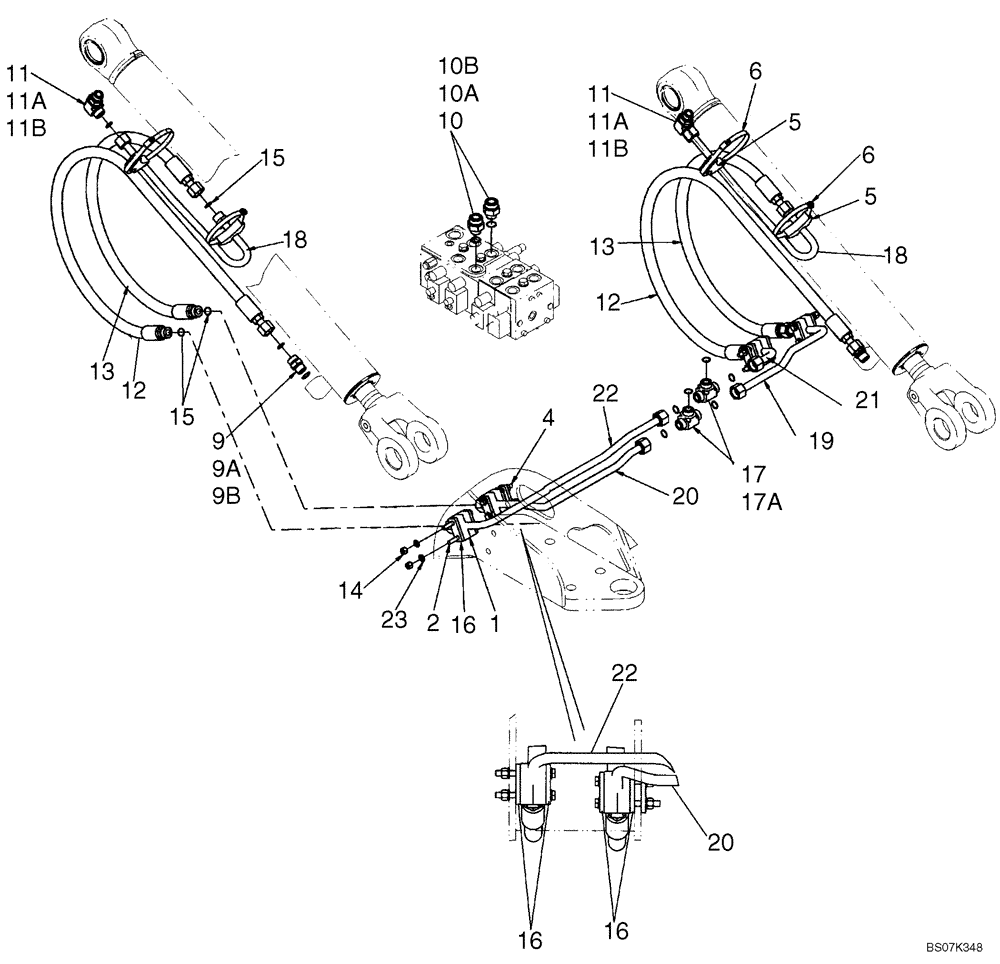

Запчасти Case 521E (08-06) - HYDRAULICS - LOADER LIFT (XT LOADER) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
LOADER LIFT; XT-LOADER
1шт.
1
379374A1
BLOCK
Mounting
4шт.
2
827-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9
4шт.
3
827-10110
BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9
4шт.
5
391133A1
CLAMP
2-4шт.
6
214-1488
HOSE CLAMP,130.05mm - 152.4mm
2-4шт.
9
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Refs. 9A, 9B
2шт.
9a
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
9b
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
10
700-166
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Refs. 10A, 10B
2шт.
10a
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
10b
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal
1шт.
11
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Refs. 11A, 11B
2шт.
11a
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
11b
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
12
391259A1
HOSE ASSY.,19.05mm ID x 1746mm L
1746 mm ( 68-3/4 in); Lift Cylinder
2шт.
13
87448546
HOSE ASSY.
Lift Head; 1311mm ( 51-5/8 in )
2шт.
14
832-10410
NUT,M10 x 1.5, Cl 8
8шт.
15
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
4шт.
16
367658A1
PLATE
10шт.
17
701-427
TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS
Incl. Ref. 17A
2шт.
17a
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
3шт.
18
87448539
HYD TUBE,19.05 mm OD
Lift Cylinder
2шт.
19
8606056
TUBE,19.05 mm OD x 185, 373.5 mm L
Left Hand
1шт.
20
8606058
TUBE,19.05 mm OD x 454.5, 185 mm L
Lift Head End, RH
1шт.
21
8606062
TUBE,19.05 mm OD x 127, 87.5 mm L
Left Hand; Rod End; Replaces 87448535 Tube Used On Some Models
1шт.
22
87448537
HYD TUBE,19.05 mm OD
Lift Rod End, RH
1шт.
23
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
16шт.
