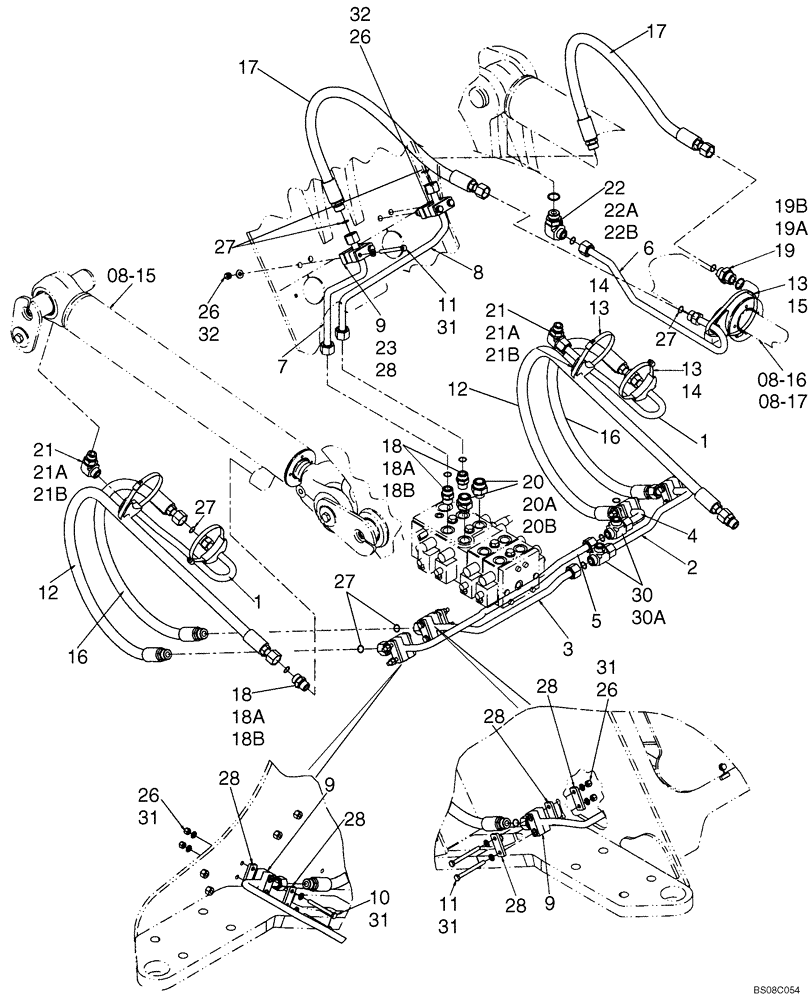

Запчасти Case 521E (08-05) - HYDRAULICS - LOADER LIFT AND BUCKET (Z BAR, XR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR/XR LOADER

1шт.

1

86983364

TUBE,19.05 mm OD x 375, 67 mm L

Lift Cylinder

2шт.

2

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Lift Head End LH

1шт.

3

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Lift Head End RH

1шт.

4

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Lift Rod End LH

1шт.

5

8606064

TUBE,19.05 mm OD x 740.4, 181.4 mm L

Lift Rod End RH

1шт.

6

8605912

TUBE,19.05 mm OD x 680, 105 mm L

Tilt Cylinder

1шт.

7

404163A1

TUBE

Tilt Head End

1шт.

8

8605914

TUBE,19.05 mm OD x 448, 225 mm L

Tilt Rod End

1шт.

9

379374A1

BLOCK

Tube Mounting

6шт.

10

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

11

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

8шт.

12

391053A1

HOSE ASSY.

Lift Cylinder, 1611 mm (63-1/2 in)

2шт.

13

391133A1

CLAMP

5шт.

14

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

15

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

1шт.

16

86983384

HOSE,19.05mm ID x 1046mm L

Lift Head, 1536 mm (60-1/2 in)

2шт.

17

391054A1

HOSE ASSY.

Tilt Cylinder, 1058 mm (41-5/8 in)

2шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 18A, 18B

4шт.

18a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 19A, 19B

1шт.

19a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 20A, 20B

2шт.

20a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

21

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 21A, 21B

2шт.

21a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22

391056A1

ELBOW

90 Deg; Adj.; 25mm ORFS x M33 ORB; Incl. Refs. 22A, 22B

1шт.

22a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

23

87324906

SPACER

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

9шт.

28

367658A1

PLATE

Clamp Cover

12шт.

30

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl. Ref. 30A

2шт.

30a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

20шт.

32

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
