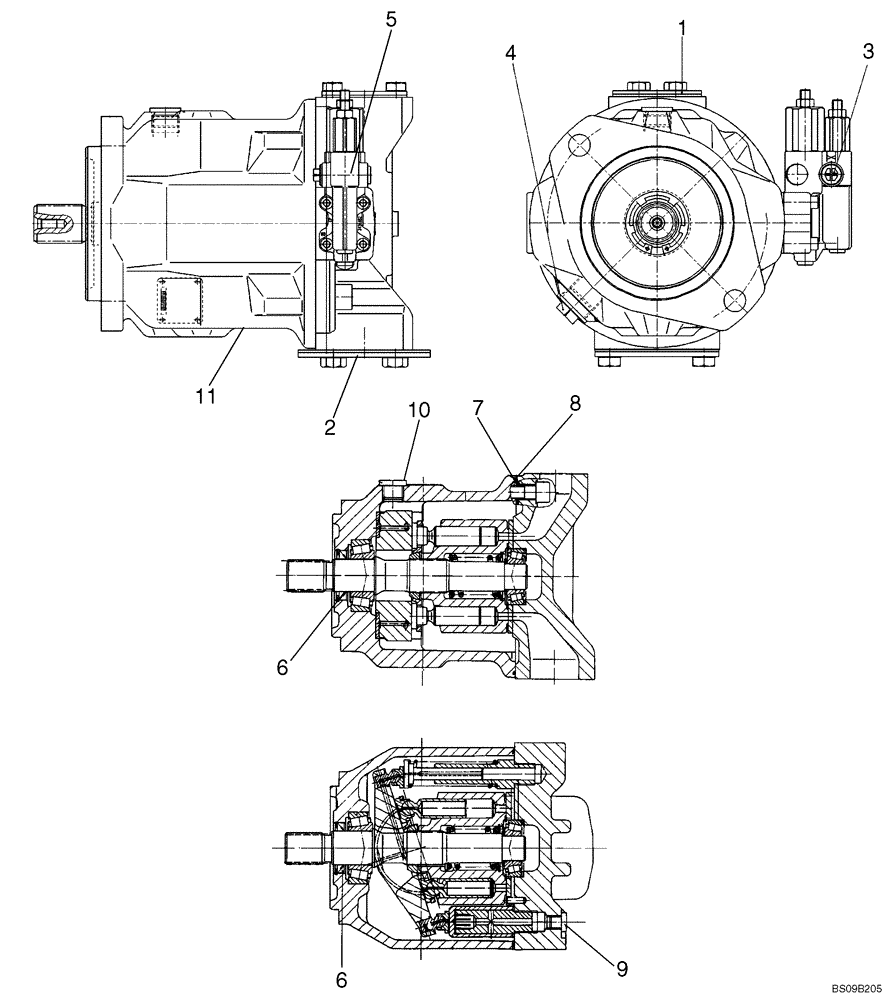

Запчасти Case 521E (08-04A) - PUMP ASSY - P.I.N. N7F201209 AND AFTER (08) - HYDRAULICS

84136352

HYDRAULIC PUMP,71 CC

PUMP, HYDRAULIC, Incl. Refs. 1 - 11

1шт.

84136352R

REMAN-HYD PUMP

521E TIER 3 PUMP ASSY - P.I.N. N7F201209 AND AFTER (1/08-)

1шт.

84136352C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84185175

SAE FLANGE

COVER, Flange

1шт.

2

84185177

SAE FLANGE

COVER, Flange

1шт.

3

84185178

SCREW

SCREW, Seal

1шт.

4

84185179

SCREW,M27 x 2

SCREW, Seal

1шт.

5

84185180

MANIFOLD

CONTROL

1шт.

6

84185181

RING

SEAL, SHAFT

1шт.

7

84185182

O-RING

O-RING

1шт.

8

84185183

O-RING

O-RING

1шт.

9

84185184

SCREW

SCREW, LOCKING

1шт.

10

84185185

SCREW

SCREW, LOCKING

1шт.

11

NSS

NOT SOLD SEPARAT

PUMP

1шт.
