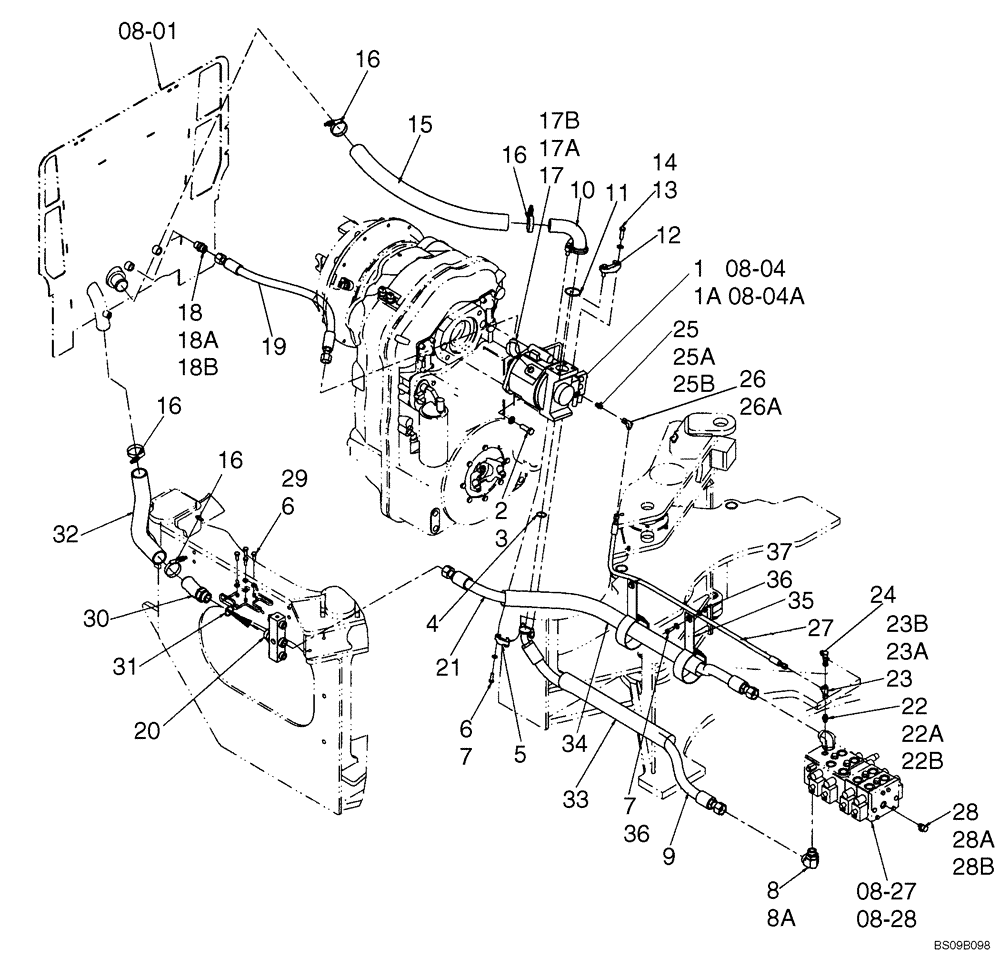

Запчасти Case 521E (08-03) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
RESERVOIR TO PUMP AND LOADER CONTROL VALVE
1шт.
1
87436172
PUMP
Hydraulic, Prior To P.I.N. N7F208080; See Figure 08-04
1шт.
87436172R
REMAN-HYD PUMP
521E TIER 3 PRIOR TO P.I.N. N7F208080 (1/08-)
1шт.
87436172C
CORE-INJECTION PUMP
Return Number
1шт.
1a
84136352
HYDRAULIC PUMP,71 CC
HYDRAULIC, P.I.N. N7F208080 And After; See Figure 08-04A
1шт.
1a
84136352R
REMAN-HYD PUMP
521E TIER 3 P.I.N N7F208080 And After (1/08-)
1шт.
84136352C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
2шт.
3
627-16045
BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd
2шт.
4
238-6219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
1шт.
5
A12306
FLANGE
2шт.
6
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
8шт.
7
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
6шт.
8
700-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Incl. Ref. 8A
1шт.
8a
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
9
404041A1
HOSE ASSY.
Pump to Loader Control Valve, 1290 mm (50-3/4 in)
1шт.
10
365417A1
TUBE,50.8 mm OD, 130, 100 mm Length
Pump Suction
1шт.
11
238-5228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
1шт.
12
A14141
FLANGE
2шт.
14
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
4шт.
15
365454A1
HOSE,50.80 mm ID x 797.00, SAE 100R4
Reservoir to Hydraulic Pump, 797 mm (31-3/8 in), Serial Range: -N9F208079
1шт.
15
87479709
HYDRAULIC HOSE,5.08 mm ID x 755.00 mm, SAE 100R4 CLASS 4 TYPE 2
Reservoir to Hydraulic Pump, Start Serial: N9F208080
1шт.
16
254026A1
HOSE CLAMP,44.45mm - 66.67mm
4шт.
17
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Refs. 17A, 17B
1шт.
17a
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
17b
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
18
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. Refs. 18A, 18B
1шт.
18a
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
18b
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
19
87704891
HOSE ASSY.
Case Drain, 762 mm (30 in)
1шт.
20
87577181
MANIFOLD VALVE
Filter
1шт.
21
365516A2
HOSE ASSY.
Loader Control Valve Return; 1613 mm (63 - 1/2 in)
1шт.
22
700-153
HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl. Refs. 22A, 22B
1шт.
22a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
22b
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
Boss Seal
1шт.
23
701-421
TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS
Incl. Refs. 23A, 23B
1шт.
23a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
2шт.
23b
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Boss Seal
2шт.
24
190117A1
COUPLING
Diagnostic
1шт.
25
700-100
HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB
Incl. Refs. 25A, 25B
1шт.
25a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
25b
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
Boss Seal
1шт.
26
701-329
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS
Incl. Ref. 26A
1шт.
26a
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
1шт.
27
366008A1
HOSE ASSY.
Load Sensing, 1442 mm (56-3/4 in)
1шт.
28
178889A1
DIAGNOSTIC COUPLER
Diagnostic; Incl. 28A, 28B
1шт.
28a
143349A1
DUST CAP
1шт.
28b
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
30
390208A2
ADAPTER
Filter
1шт.
31
637-64386
O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro
1шт.
32
429045A1
HOSE
Hydraulic Reservoir Return, 257 mm (10 - 1/8 in)
1шт.
33
401525A1
HOSE PROTECTION,60.00 mm ID x 600.00 mm
1шт.
34
401526A1
HOSE PROTECTION,60mm ID x 1200mm L
1шт.
35
401527A2
STRAP
2шт.
36
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
37
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
