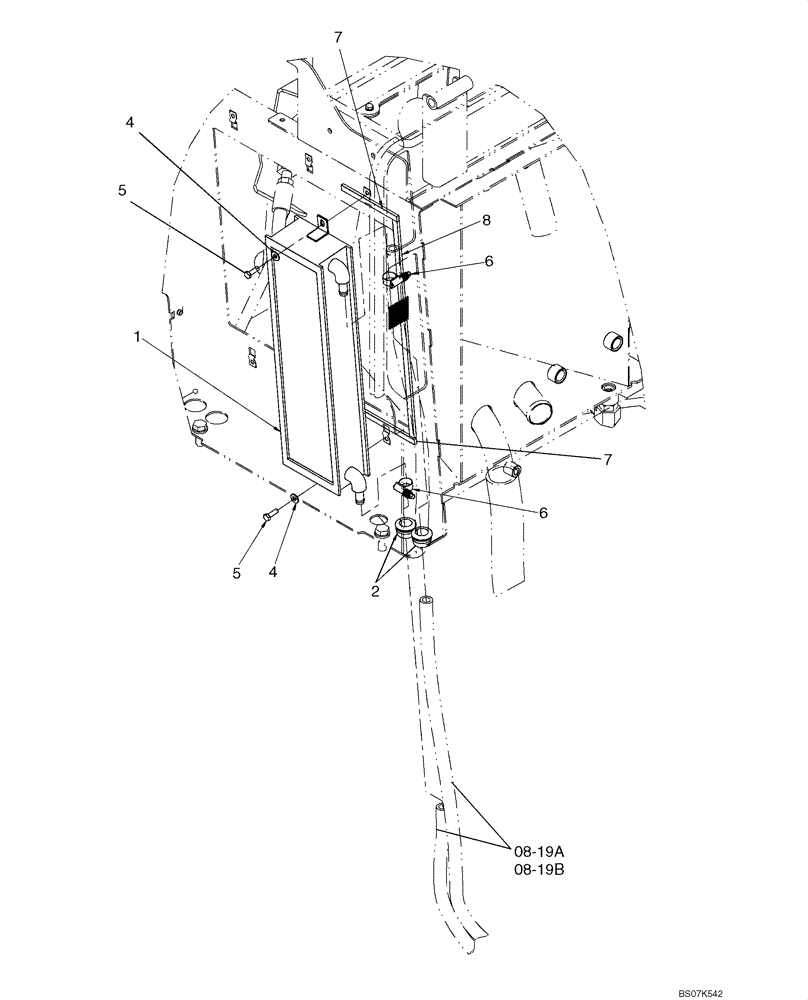

Запчасти Case 521E (08-01B) - HYDRAULICS - OIL COOLER MOUNTING (08) - HYDRAULICS

1

362963A1

COOLER, OIL

Hydraulic

1шт.

2

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

6

328186A1

HOSE CLAMP

2шт.

7

382260A1

SEAL

Hydraulic Oil Cooler

2шт.

8

382258A1

OIL SEAL

Hydraulic Oil Cooler

1шт.
