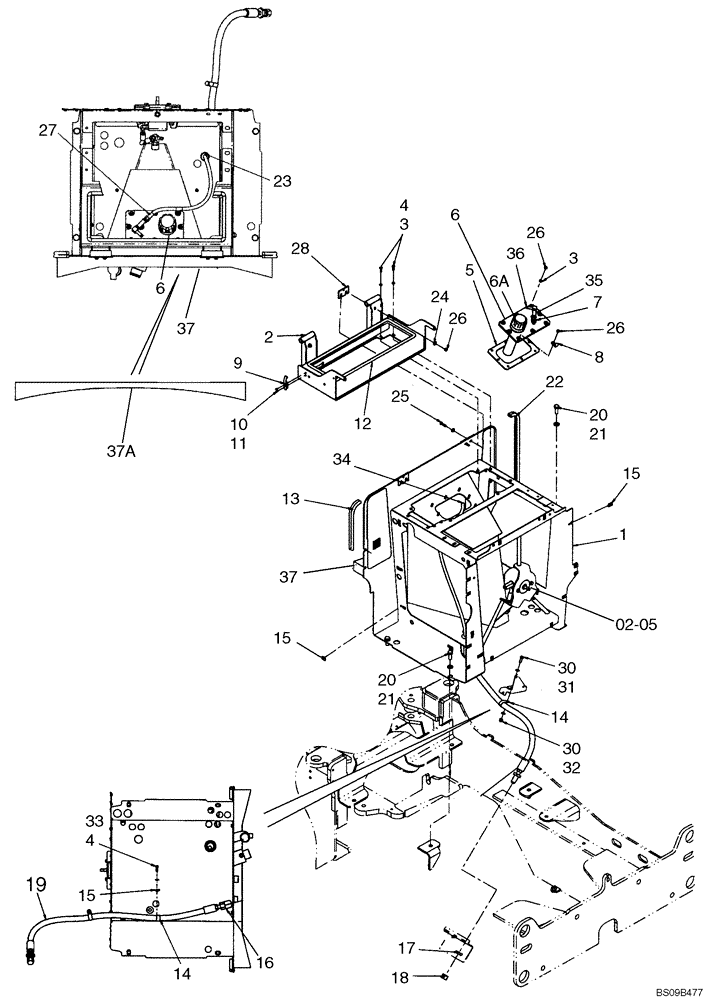

Запчасти Case 521E (08-01) - HYDRAULIC RESERVOIR - ASSEMBLY (08) - HYDRAULICS

1

87598214

FRAME

Cooling System, Incl. Ref. 1A; Replaces 87726284

1шт.

1a

408566A1

INSERT,M8

Threaded, M8; Not Illustrated

8шт.

2

398882A3

SUPPORT ASSY.

Cooling Sytem

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

5

379587A2

GASKET

Hydraulic Tank

1шт.

6

8606005

CAP

ASSY, Hydraulic Tank; Incl. Ref. 6A

1шт.

6a

87757884

FILLER CAP

Hydraulic Tank

1шт.

7

8606006

VALVE, CHECK

Hydraulic tank

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

9

60-4640T1

LATCH

1шт.

10

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

11

225-14108

NUT,#8-32

2шт.

12

382665A1

SEAL

A/C Condensor

1шт.

13

394866A1

SEAL

Hood Front

1шт.

14

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

15

833-40408

NUT,M8, U

28шт.

16

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 16A, 16B

1шт.

16a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal; Not Illustrated

1шт.

16b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal; Not Illustrated

1шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

19

397439A1

HOSE ASSY.

Hydraulic Tank Drain, 1448 mm (57 in)

1шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

21

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

22

394867A1

SEAL

Hood Front

1шт.

23

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

24

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

25

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

28

426945A1

PLATE

Shim

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

408523A1

HOSE

Hydraulic Tank Breather, 1630 mm (64 - 11/64 in)

1шт.

35

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

1шт.

36

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

37

87724829

SEAL

Cooling Frame, 1025 mm (40 - 23/64 in), Serial Range: -N9F208025

1шт.

37a

84195909

SEAL

Cooling Frame, 1025 mm (40 - 23/64 in), Start Serial: N9F208026

1шт.
