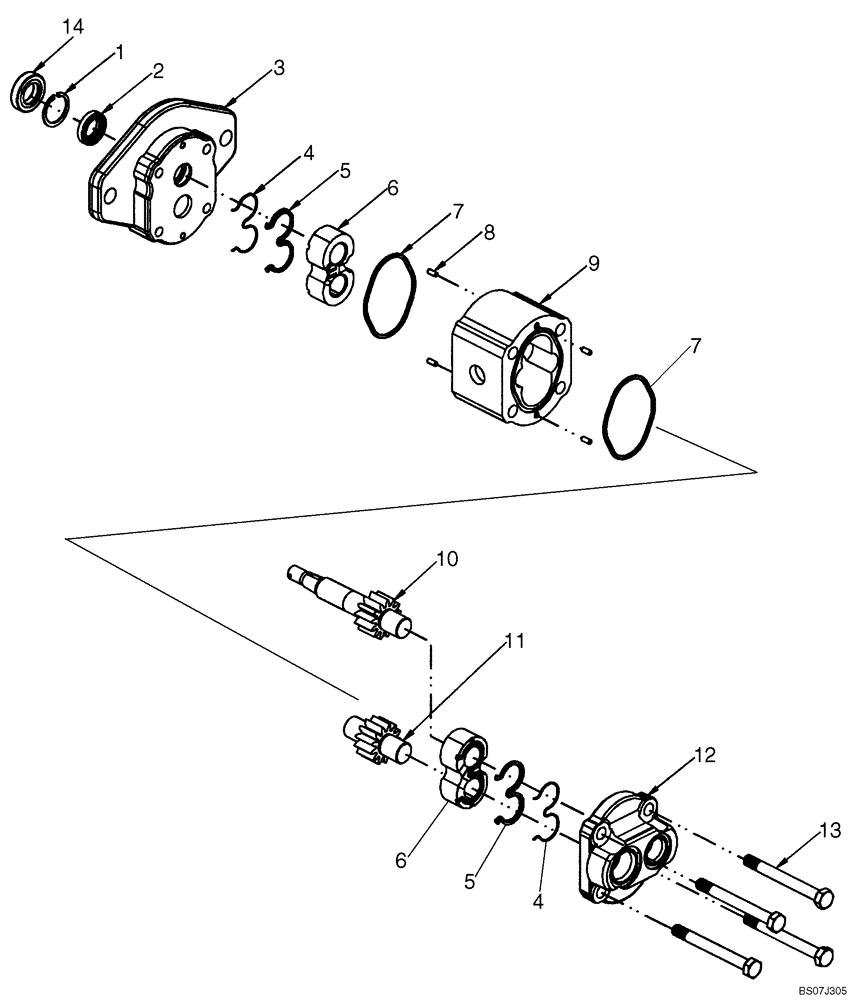

Запчасти Case 521E (07-04) - HYDRAULICS - BRAKE - PUMP ASSY (07) - BRAKES

87402776

HYDRAULIC PUMP,14 CC

Brake, Incl. Refs. 1 - 14

1шт.

87402776R

REMAN-HYD PUMP

521E TIER 3 ( 1/08 - )

1шт.

87402776C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87350508

SEAL KIT

Brake Pump, Incl. Refs. 1, 2, 4, 5, 7, 14

1шт.

1

NSS

NOT SOLD SEPARAT

RING, RETAINING

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, SHAFT

1шт.

3

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

4

NSS

NOT SOLD SEPARAT

RING, BACK-UP

2шт.

5

NSS

NOT SOLD SEPARAT

E-SEAL

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK, BEARING

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL

2шт.

8

NSS

NOT SOLD SEPARAT

PIN, DOWEL

4шт.

9

NSS

NOT SOLD SEPARAT

HOUSING, GEAR

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR, DRIVE

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR, IDLER

1шт.

12

NSS

NOT SOLD SEPARAT

COVER, END

1шт.

13

NSS

NOT SOLD SEPARAT

BOLT

4шт.

14

NSS

NOT SOLD SEPARAT

SEAL, OUTER SHAFT

1шт.
