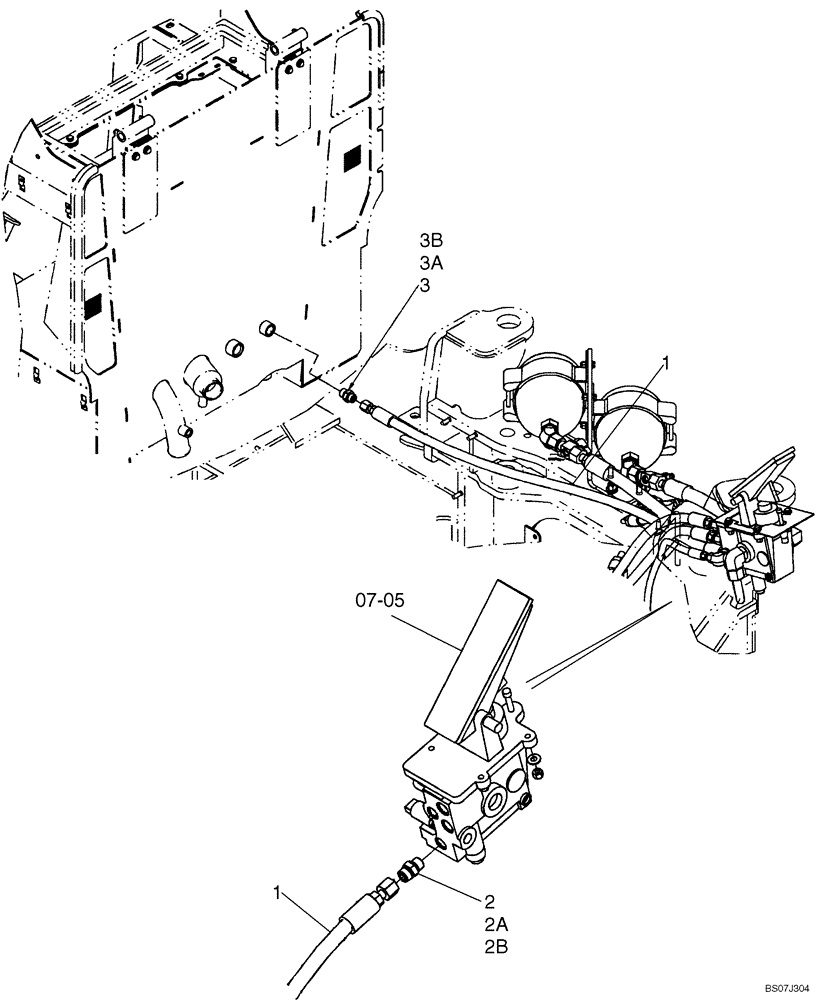

Запчасти Case 521E (07-03D) - HYDRAULICS - BRAKE, MAIN - RESERVOIR (07) - BRAKES

1

87600849

HOSE ASSY.

Brake Valve To Hydraulic Reservoir, 1217 mm (47 - 29/32 in)

1шт.

2

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 2A, 2B

1шт.

2a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Face Seal

1шт.

2b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Boss Seal

1шт.

3

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 3A, 3B

1шт.

3a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.
