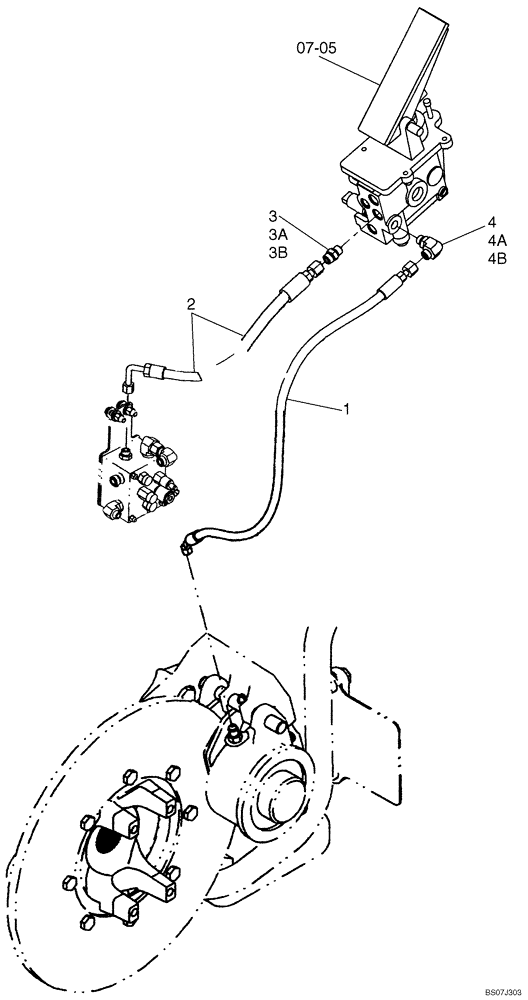

Запчасти Case 521E (07-03C) - HYDRAULICS - BRAKE, MAIN - PARKING BRAKE, FAN RELIEF (07) - BRAKES

1

87325997

HOSE ASSY.

Brake Valve To Parking Brake, 1070mm (43 in)

1шт.

2

87600848

HOSE ASSY.

Brake Valve To Fan Relief Valve, 934 mm (36 - 25/32 in)

1шт.

3

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 3A, 3B

1шт.

3a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 4A, 4B

1шт.

4a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.
