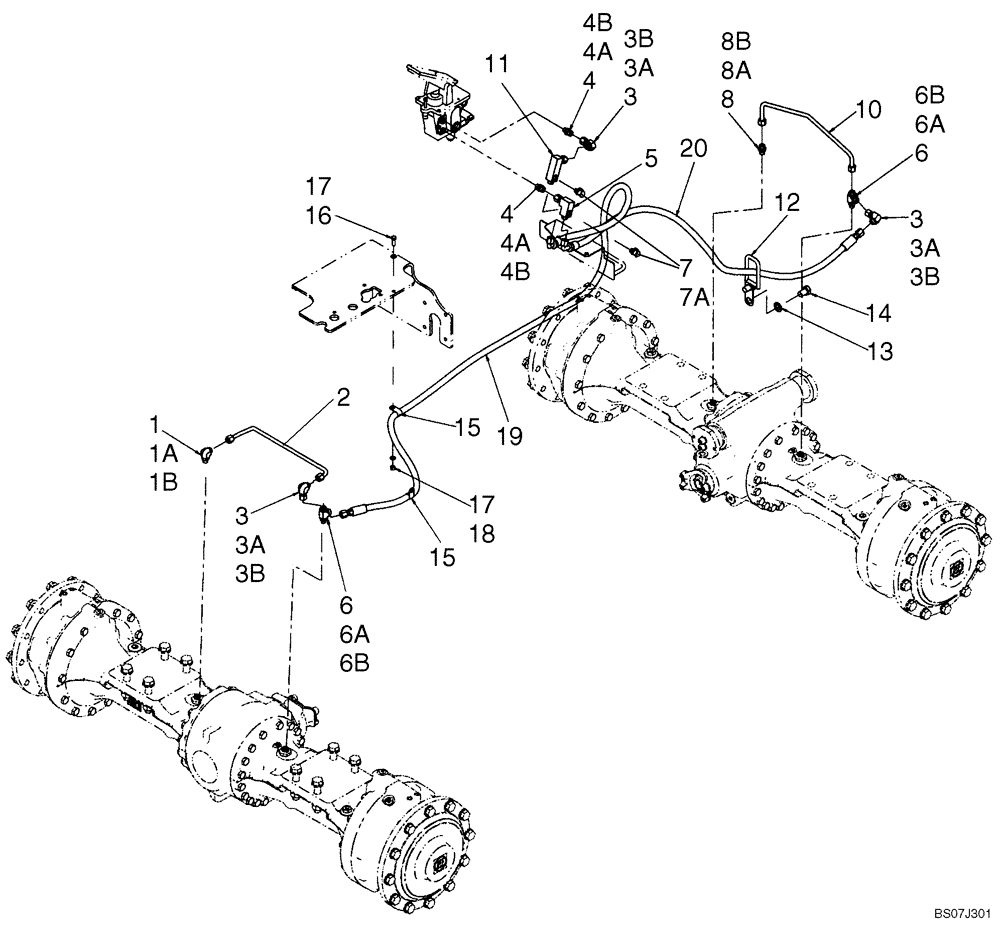

Запчасти Case 521E (07-03A) - HYDRAULICS - BRAKE, MAIN - AXLE (07) - BRAKES

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 1A, 1B

1шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

Front Axle Brake

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Refs. 3A, 3B

3шт.

3a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Refs. 4A, 4B

2шт.

4a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

377754A1

FITTING

Axle Brakes

1шт.

6

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 6A, 6B

2шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

178889A1

DIAGNOSTIC COUPLER

Incl. Ref. 7A

2шт.

7a

143349A1

DUST CAP

1шт.

8

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Refs. 8A, 8B

1шт.

8a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

87552630

TUBE,10.2 mm ID x 12.7 mm OD x 480, 120 mm L

Rear Axle Brake

1шт.

11

372031A3

FITTING

Declutch, Incl. Refs. 11A, 11B

1шт.

11a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

1шт.

12

408004A1

GUARD ASSY.

Rear Axle Brake Hose

1шт.

13

895-11020

WASHER,M20 x 37 x 3

2шт.

14

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

2шт.

15

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

87476354

HOSE ASSY.,12.7mm ID x 2843mm L, SAE 100R1

Brake Valve To Front Axle Brake, 2843 mm (111 - 59/64 in); Replaces 87620429

1шт.

20

87620430

HOSE ASSY.

Brake Valve To Rear Axle Brake, 1939 mm (76 - 1/3 in)

1шт.
