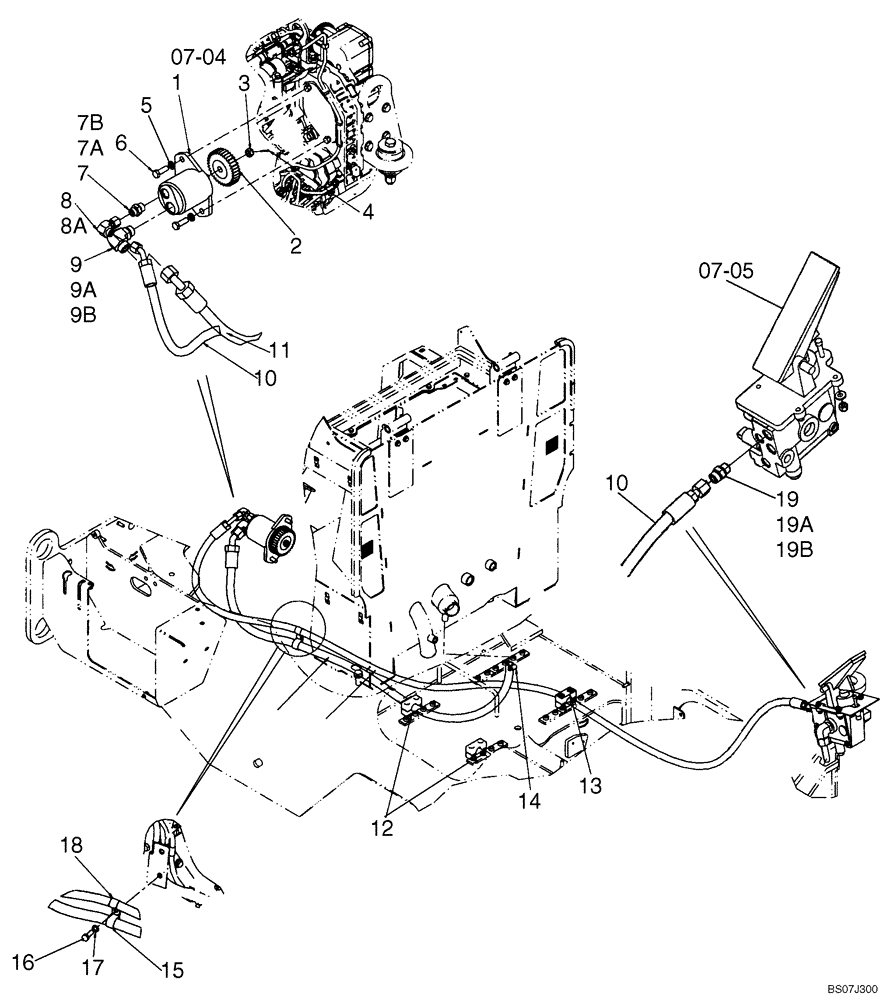

Запчасти Case 521E (07-03) - HYDRAULICS - BRAKE, MAIN - PUMP (07) - BRAKES

1

87402776

HYDRAULIC PUMP,14 CC

See Figure 07-04

1шт.

87402776R

REMAN-HYD PUMP

521E TIER 3 ( 1/08 - )

1шт.

87402776C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86985892

GEAR

1шт.

3

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

4

432-616

COTTER PIN,3/32" x 1"

1шт.

5

892-11012

LOCK WASHER,M12

2шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

7

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 7A, 7B

1шт.

7a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 8A

1шт.

8a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

9

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 9A, 9B

1шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

87659574

HOSE ASSY.

Brake Pump Pressure To Brake Valve, 3223 mm (126 - 7/8 in)

1шт.

11

87706313

HOSE ASSY.

Brake Pump Suction From Hydraulic Tank, 1610 mm (63 - 3/8 in)

1шт.

12

372453A1

BLOCK

Hose Mounting

2шт.

13

8501052

SPECIAL CLAMP

Hose Mounting

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

15

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

18

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

19

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 19A, 19B

1шт.

19a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.
