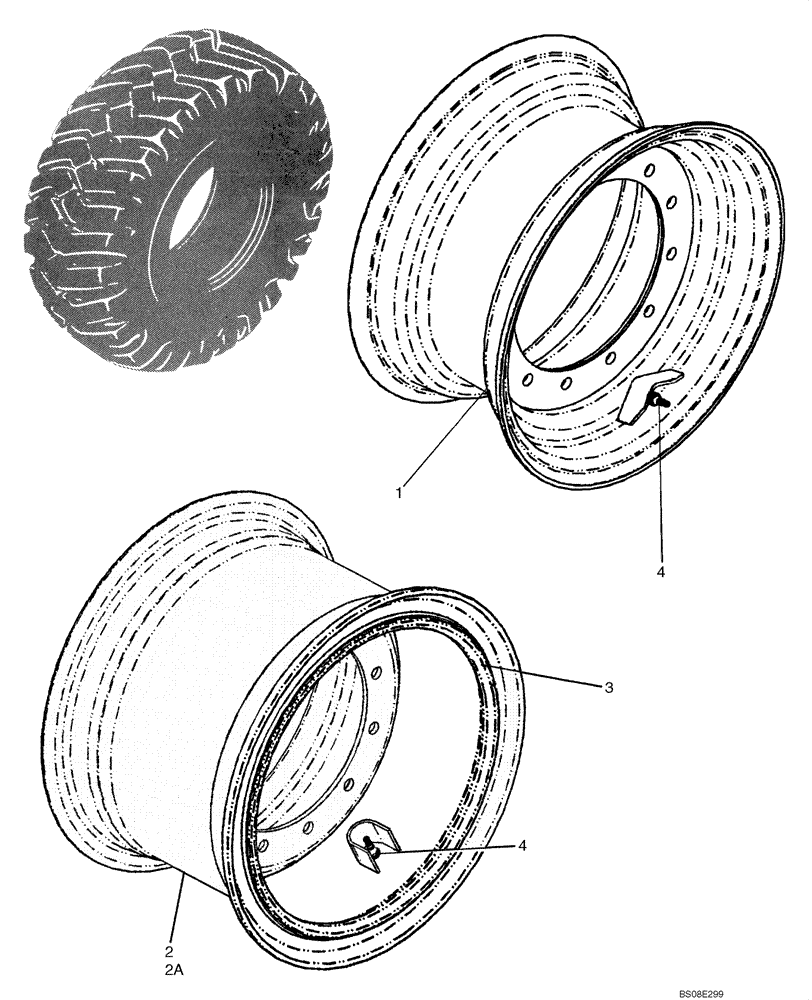

Запчасти Case 521E (06-29) - WHEELS (06) - POWER TRAIN

1

87745721

WHEEL ASSY

Solideal, Tan, 25 x 13 in; 1 Piece

4шт.

1

87492683

WHEEL ASSY

Titan, Tan, 25 x 13 in; 1 Piece

4шт.

2

87745718

WHEEL ASSY

Solideal, Tan, 25 x 14 in; 3 Piece, Includes Rim, Sidering, and Lockring, Which Are Not Serviced Seperately

4шт.

2

87492693

WHEEL ASSY

Titan, Tan, 25 x 14 in; 3 Piece; Includes Ref. 3 A19101 O-Ring, Also Includes A19100 Lock Ring and S300702 Side Flange Ring Which Are Not Illustrated

4шт.

2a

87625605

WHEEL ASSY

Solideal, Tan, 25 x 17 in; 3 Piece, Includes Rim, Sidering, and Lockring, Which Are Not Serviced Seperately

4шт.

2a

87492724

WHEEL ASSY

Titan, Tan, 25 x 17 in; 3 Piece; Includes Ref. 3 A19101 O-Ring, Also Includes A19100 Lock Ring and 103185A1 Side Flange Ring Which Are Not Illustrated

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

Wheel

1шт.

4

A20058

VALVE STEM

1шт.
