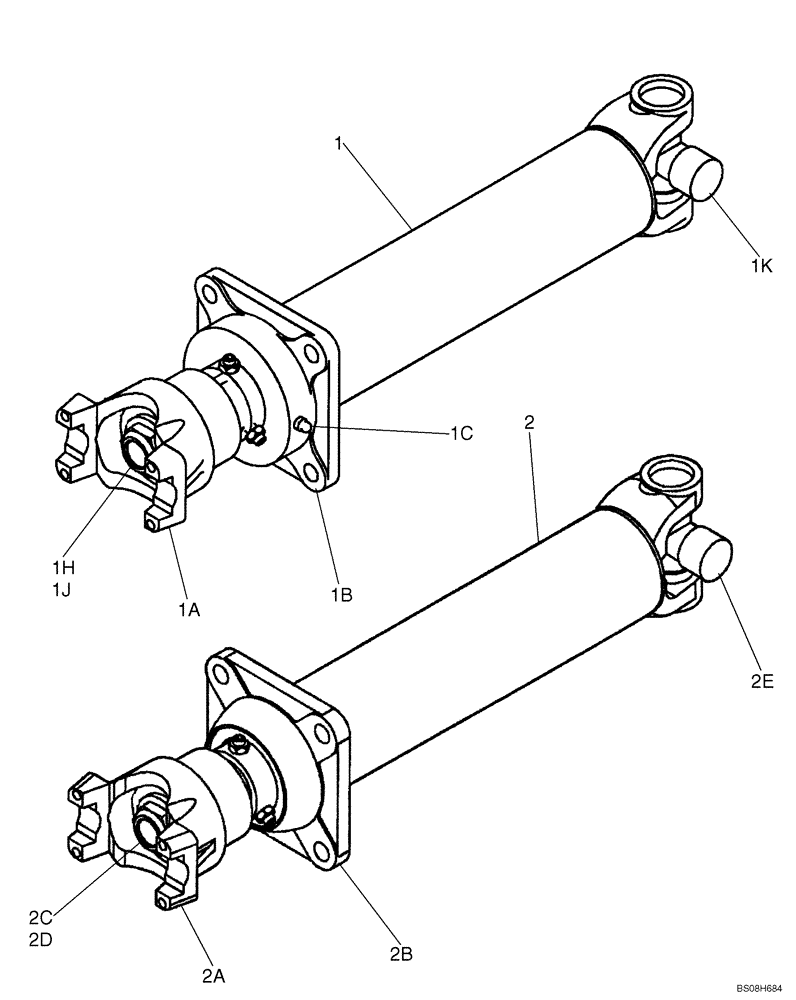

Запчасти Case 521E (06-25) - DRIVE SHAFT, FRONT (06) - POWER TRAIN

1

87613716

DRIVE SHAFT

Front; Incl. Refs. 1A - 1K; No Longer Available, Order 87314315 Drive Shaft, Ref. 2

1шт.

1a

8604673

YOKE

1шт.

L106070

FLANGED BEARING

Carrier, Incl. Refs. 1B - 1G

1шт.

1b

NSS

NOT SOLD SEPARAT

Housing

1шт.

1c

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1d

L33788

AXLE PIN

1/4 in dia, Not Illustrated

1шт.

L33787

KIT

Bearing And Collar, Incl. Refs. 1E - 1G

1шт.

1e

NSS

NOT SOLD SEPARAT

Bearing, Support, Not Illustrated

1шт.

1f

L33789

COLLAR

Not Illustrated

1шт.

1g

61-32516

HEX SOC SCREW,1/4"-20 x 1"

Not Illustrated

1шт.

1h

8604270

LOCK NUT

1шт.

1j

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

1k

8604433

BEARING ASSY

Spider

1шт.

2

87314315

DRIVE SHAFT

Front; Incl. Refs. 2A - 2E

1шт.

2a

8604673

YOKE

1шт.

2b

87314314

BEARING CARRIER,49.213 mm ID x 60.6 mm

1шт.

2c

8604270

LOCK NUT

1шт.

2d

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

2e

8604433

BEARING ASSY

Spider

1шт.
