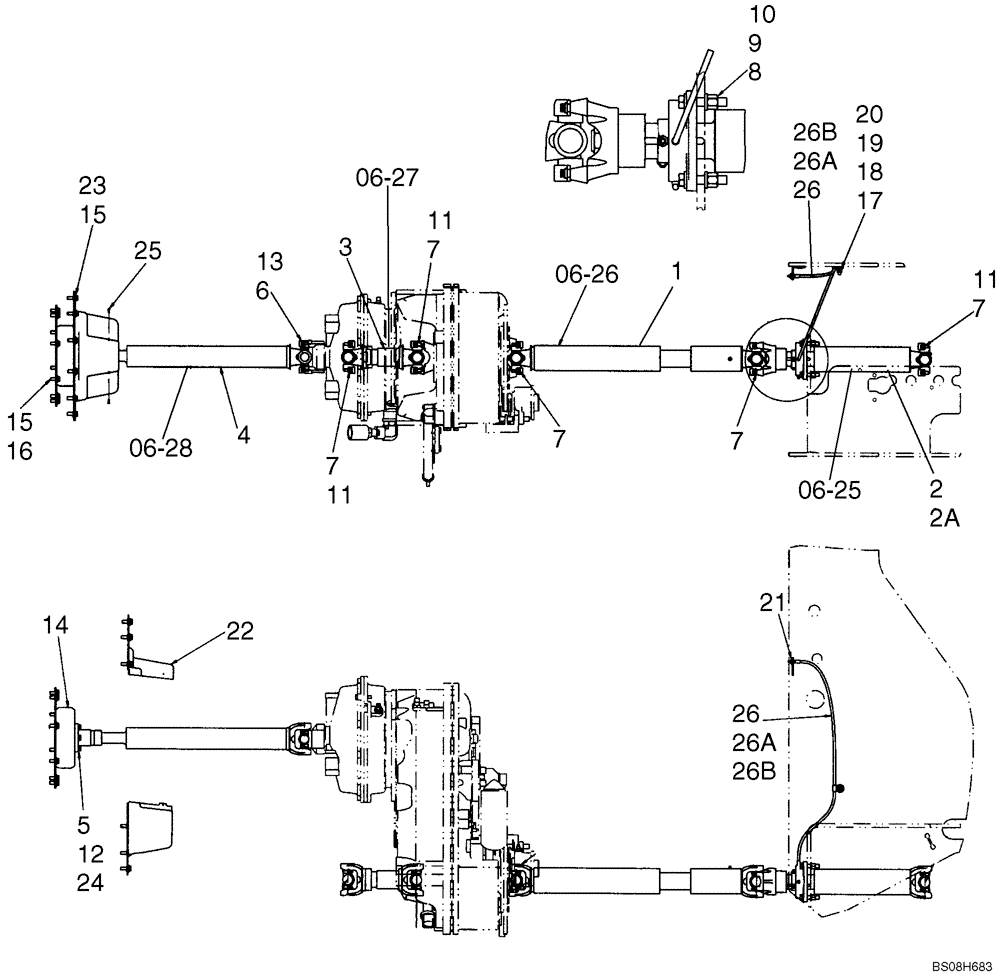

Запчасти Case 521E (06-24) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

86990309

DRIVE SHAFT

Center; See Figure 06-26

1шт.

2

87613716

DRIVE SHAFT

Front; No Longer Available, Order Drive Shaft 87314315, Ref. 2A; See Figure 06-25

1шт.

3

86990308

DRIVE SHAFT

Rear; See Figure 06-27

1шт.

2a

87314315

DRIVE SHAFT

Front; See Figure 06-25

1шт.

4

86983613

DRIVE SHAFT

Engine; See Figure 06-28

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

6

D137626

CLAMP,30.175mm D Clamping Pipe

2шт.

7

L116943

SECURING STRAP

10шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

11

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

Capscrew, 12 Pt

20шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

13

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

4шт.

14

442022A1

COUPLING

Driveshaft

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

18шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

Hex

1шт.

22

87725009

COVER

Dust

1шт.

23

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

10шт.

24

345-49

SEALANT

242

1шт.

25

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

26

L54694

HOSE,4.8mm ID x 1041mm L

Grease, 1041 mm (41 in); Incl. 26A, 26B

1шт.

26a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

26b

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.
