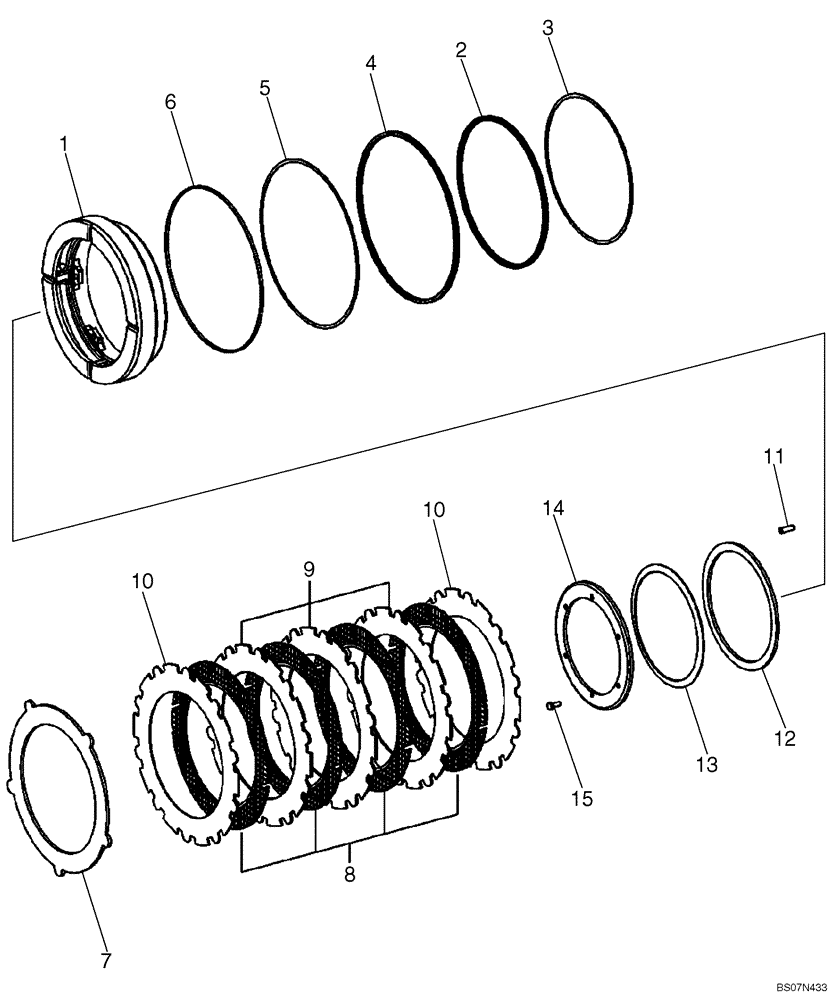

Запчасти Case 521E (06-23D) - AXLE, REAR - BRAKE (06) - POWER TRAIN

87617600

REAR AXLE

Limited Slip; See Figures 06-23A - 23E; Incl. Refs. 1 - 15

1шт.

87617600R

REMAN-REAR AXLE

521E TIER 3 (1/08-)

1шт.

87617600C

CORE-REAR AXLE

Return Number

1шт.

87745600

DRIVE

Axle, Incl. Refs. 1 - 15, Also Incl. Parts on Fig. 06-23E

2шт.

1

87743216

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87743217

SHIM

End

1шт.

8

87341835

BRAKE DISC

Inner, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle.

4шт.

9

8603582

BRAKE PLATE

Outer, NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle.

3шт.

10

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365252 Kit, Incl 8 - 10, One Kit Needed Per Axle.

2шт.

11

87743218

PIN

Slot

6шт.

12

87743219

WASHER

1шт.

13

87743220

WASHER

Cup

6шт.

14

87743746

COVER

1шт.

15

87743747

SCREW,Hex

Hex, M8 x 20

6шт.
