(06-23C) - AXLE, REAR - DIFFERENTIAL

Запчасти Case 521E (06-23C) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

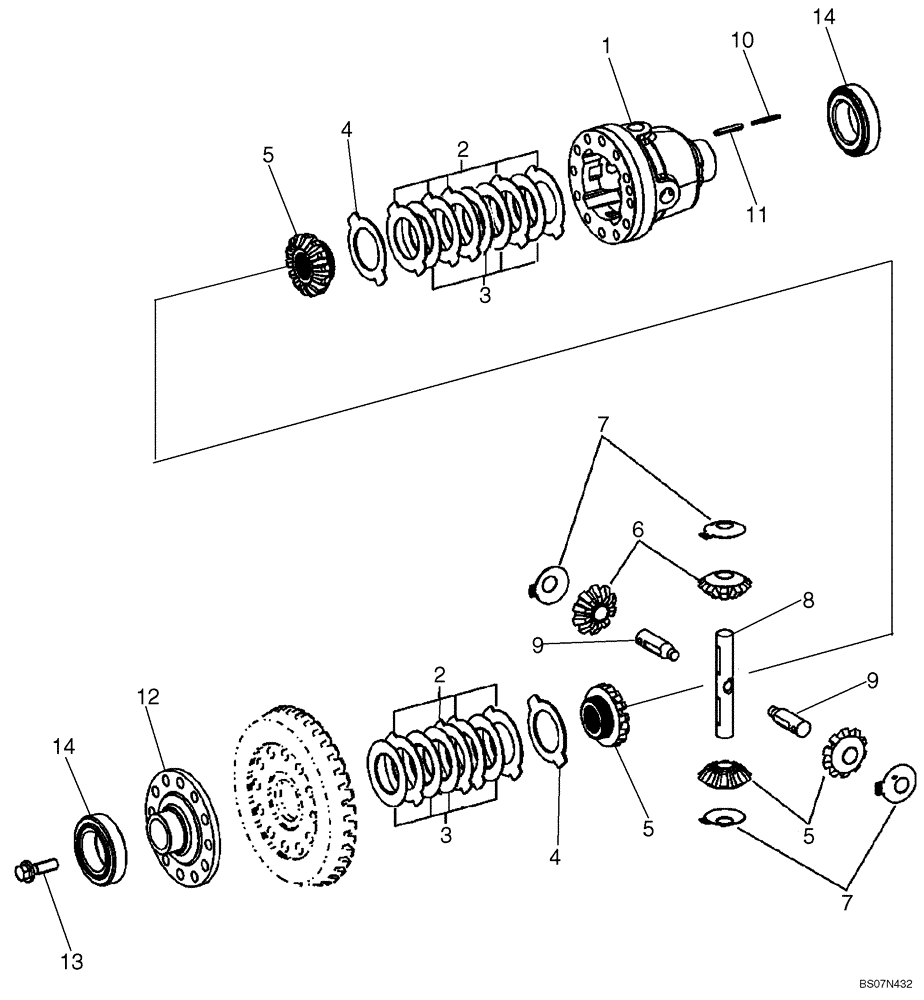

Схема запчастей Case 521E - (06-23C) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN
3
3
1
5
9
7
14
6
7
8
2
10
13
2
4
5
14
12
5
11
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87617600

REAR AXLE

Limited Slip; Incl. Refs. 1 - 14; Incl. Figure(s) 06-23A - 23E

1шт.

87617600R

REMAN-REAR AXLE

521E TIER 3 (1/08-)

1шт.

87617600C

CORE-REAR AXLE

Return Number

1шт.

87745599

DIFFERENTIAL ASSY

Incl. Refs. 1 - 14

1шт.

1

87742938

DIFFERENTIAL

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK Outer

1шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK Outer

1шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK Outer

1шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

Thrust

2шт.

5

87742944

BEVEL GEAR

Axle

2шт.

6

87742945

BEVEL GEAR

Differential

4шт.

7

87742946

THRUST WASHER

Thrust

4шт.

8

87742956

AXLE DIFFERENTIAL

Differential

1шт.

9

87742957

AXLE DIFFERENTIAL

Differential Half

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

Slot, 5 x 80 mm

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Locking

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
