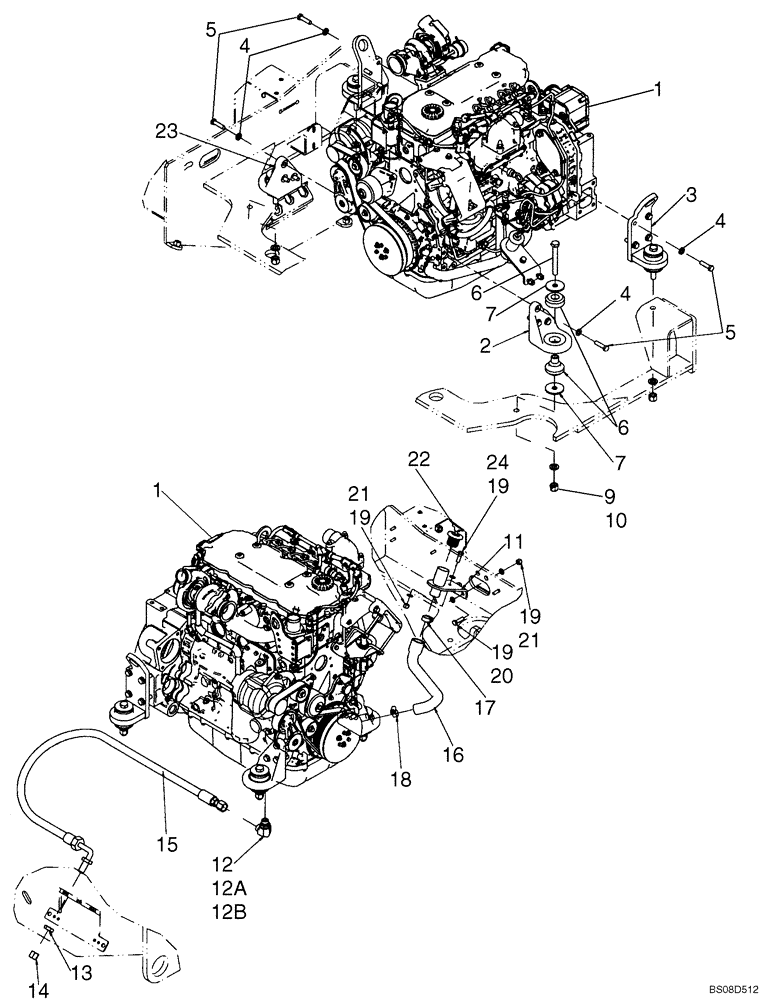

Запчасти Case 521E (02-01) - MOUNTING, ENGINE (02) - ENGINE

1

87579398

ENGINE,101kW, 4.5L, 4 Cylinders, W/ Turbocharger

4 Cylinder 4.5L Turbo, Tier III; Replaces 87579398; See Figures 02-09 - 02-13, 02-15 - 02-41, 03-05 - 03-11

1шт.

87579398ER

REMAN-REPLACEMENT EN

521E Tier 3, 4.5L, Turbo

1шт.

87579398EPAC

CORE-ENGINE

Return Number

1шт.

87579398R

REMAN-REPLACEMENT EN

521E TIER 3 (1/08-)

1шт.

87579398C

CORE-REPLACEMENT ENG

Return Number

1шт.

2

8602303

ENGINE MOUNT

Rear Right

1шт.

3

87693569

BRACKET

Flywheel Engine Mount

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

6

361811A1

ISOLATOR

Engine Mount

4шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.

8

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

832-10416

NUT,M16 x 2, Cl 8

4шт.

11

87693572

TUBE,57.5 mm L

Engine Oil Fill

1шт.

12

87426452

FITTING

Incl. Refs. 12A, 12B

1шт.

12a

4895133

GASKET,0.5mm Thk

5/8 ID x 1/16, Face Seal

1шт.

12b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

14

218-756

CAP,37 Degree, 7/8"-14

1шт.

15

86990586

FLEXIBLE HOSE

1шт.

16

87693570

TUBE,31mm Upper ID x 22mm ID Lower x 231mm L

Engine Oil Fill; For Engine Oil Filler Neck, See Figure 02-09

1шт.

17

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

1шт.

18

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

429797A1

CAP

Engine Oil Fill

1шт.

23

8602304

ENGINE MOUNT

Rear Left

1шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
