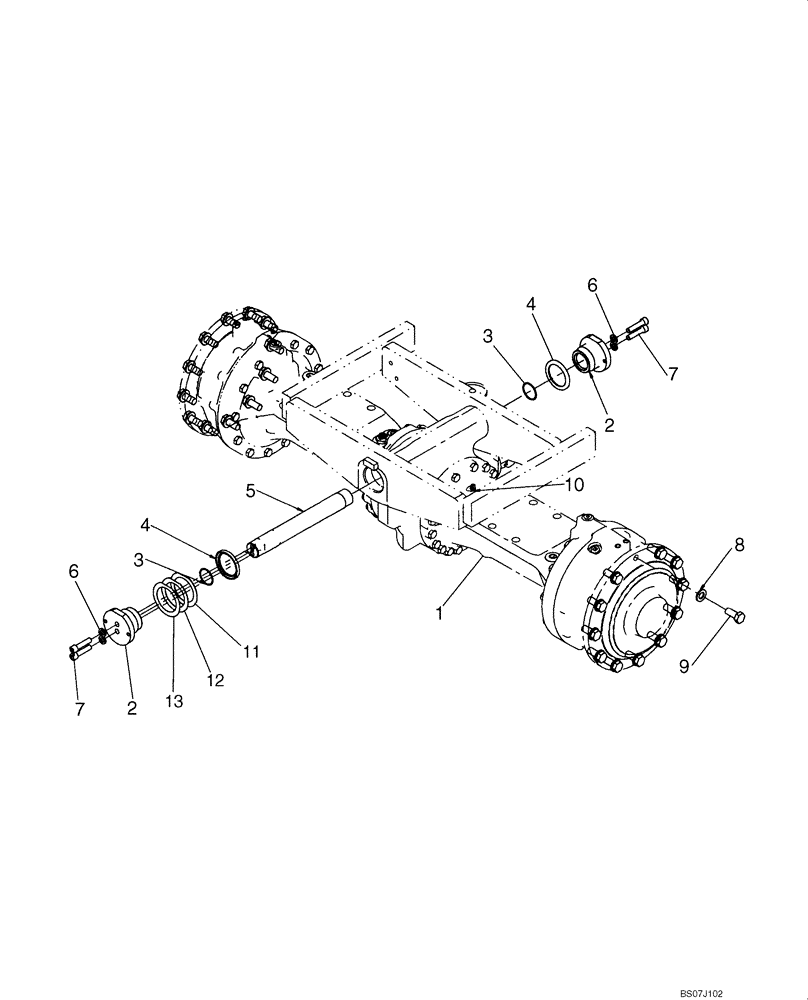

Запчасти Case 521E (06-23) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

1

87617600

REAR AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E

1шт.

87617600R

REMAN-REAR AXLE

521E TIER 3 (1/08-)

1шт.

87617600C

CORE-REAR AXLE

Return Number

1шт.

2

87731988

PIVOT

End Flange; Replaces 86991231

2шт.

3

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

4

87715378

OIL SEAL,82.55mm ID x 108.1mm OD x 19.43mm Thk

Oil; Replaces A57658

2шт.

5

87695939

PIN,55.95mm OD x 463mm L

Pivot; Replaces 87450043

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

4шт.

8

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

24шт.

9

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

24шт.

10

8603201

BREATHER

1шт.

11

368141A1

SHIM,93.5mm ID x 128mm OD x 1mm Thk

1шт.

12

368142A1

SHIM,93.5mm ID x 128mm OD x 1.5mm Thk

1шт.

13

368140A1

SHIM,93.5mm ID x 128mm OD x 0.5mm Thk

1шт.
